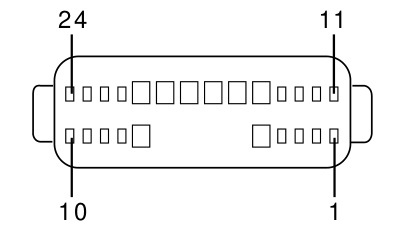

Connectors and pin-outsC010 left front earth

C010 LEFT FRONT EARTH

XENON GAS HEADLAMPS

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	NZ		See O050 LEFT WINDSCREEN WASHER (NOZZLE) DEFROZING RESISTANCE	2
2	0,35	NZ		See I010 BONNET RELEASE SWITCH	2
3	1	N		See F015 LEFT FOG LIGHT	2
4	0,5	N		See F020 LEFT SIDE DIRECTION INDICATOR	2
6	1	N		See F010 LEFT HEADLAMP	14
8	1,5	N		See F010 LEFT HEADLAMP	13
9	0,5	N		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	2
10	0,35	NZ		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
11	1,5	NL		See D004 FRONT/ENGINE COUPLING	5
13	0,35	NZ		See B001A ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	26
15	2,5	N		See N015 WINDSCREEN WIPER MOTOR	4
16	1,5	N		See N025 HEADLAMP WASHER PUMP MOTOR	2
17	1,5	N		See P005 SINGLE TONE HORN	2

All versions

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	NZ		See O050 LEFT WINDSCREEN WASHER (NOZZLE) DEFROZING RESISTANCE	2
2	0,35	NZ		See I010 BONNET RELEASE SWITCH	2
3	1	N		See F015 LEFT FOG LIGHT	2
4	0,5	N		See F020 LEFT SIDE DIRECTION INDICATOR	2
6	1	N		See F010 LEFT HEADLAMP	14
7	0,5	N		See F010 LEFT HEADLAMP	8
8	1,5	N		See F010 LEFT HEADLAMP	13
9	0,5	N		See K020 LEFT BRAKE PAD WEAR SENSOR (SWITCH)	2
10	0,35	NZ		See K025 BRAKE FLUID LEVEL SENSOR (SWITCH)	1
11	1,5	NL		See D004 FRONT/ENGINE COUPLING	5
13	0,35	NZ		See B001A ENGINE COMPARTMENT JUNCTION UNIT (FRONT)	26
15	2,5	N		See N015 WINDSCREEN WIPER MOTOR	4
16	1,5	N		See N025 HEADLAMP WASHER PUMP MOTOR	2
17	1,5	N		See P005 SINGLE TONE HORN	2
