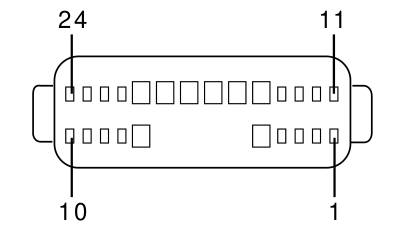

C011 RIGHT FRONT EARTH

XENON GAS HEADLAMPS

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	NZ		See O051 RIGHT WINDSCREEN WASHER (NOZZLE) DEFROZING RESISTANCE	2
2	0,5	N		See P090 ALARM SIREN	3
3	1	N		See F016 RIGHT FOG LIGHT	2
4	0,5	N		See F021 RIGHT SIDE DIRECTION INDICATOR	2
6	1	N		See F011 RIGHT HEADLAMP	14
8	1,5	N		See F011 RIGHT HEADLAMP	13
13	0,35	NZ		See K064 EXHAUST GAS PRESENCE SENSOR	2
15	2,5	NZ		See M075 ADDITIONAL HEATER CONTROL UNIT	2

All versions

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	NZ		See O051 RIGHT WINDSCREEN WASHER (NOZZLE) DEFROZING RESISTANCE	2
2	0,5	N		See P090 ALARM SIREN	3
3	1	N		See F016 RIGHT FOG LIGHT	2
4	0,5	N		See F021 RIGHT SIDE DIRECTION INDICATOR	2
6	1	N		See F011 RIGHT HEADLAMP	14
7	0,5	N		See F011 RIGHT HEADLAMP	8
8	1,5	N		See F011 RIGHT HEADLAMP	13
13	0,35	NZ		See K064 EXHAUST GAS PRESENCE SENSOR	2
15	2,5	NZ		See M075 ADDITIONAL HEATER CONTROL UNIT	2
