C050 air bag system earth

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Earths › C050 air bag system earth

Connectors and pin-outsC050 air bag system earth

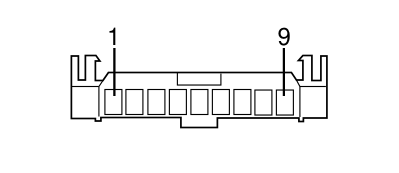

C050 AIR BAG SYSTEM EARTH

C050A – Dashboard

Wiring	Colour
See 20 DASHBOARD	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N		See M060B AIR BAG CONTROL UNIT (DASHBOARD)	1

C050B – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NR		See D071A PASSENGER SEAT COUPLING (REAR)	12
3	0,35	NZ		See D071A PASSENGER SEAT COUPLING (REAR)	4
4	0,35	NZ		See D071A PASSENGER SEAT COUPLING (REAR)	5
5	0,35	NZ		See H076 REAR AIR BAG DEACTIVATION	1
6	0,35	NZ		See D070A DRIVER'S SEAT COUPLING (REAR)	4
7	0,35	NZ		See D070A DRIVER'S SEAT COUPLING (REAR)	5
