C015 driver''s dashboard earth

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Earths › C015 driver''s dashboard earth

Connectors and pin-outsC015 driver''s dashboard earth

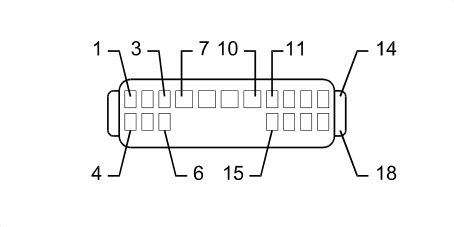

C015 DRIVER''S DASHBOARD EARTH

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NZ		See F051 RIGHT NUMBER PLATE LIGHT	2
2	1	N		See F031 RIGHT REAR LIGHT CLUSTER	4
3	1	N		See F036 RIGHT REAR LIGHT CLUSTER (MOVING SECTION ON BOOT LID)	1
4	0,5	N		See D036 RIGHT REAR DOOR COUPLING	A5
5	0,35	NR		See D036 RIGHT REAR DOOR COUPLING	C2
6	1	N		See D070B DRIVER'S SEAT COUPLING (REAR)	3
7	2,5	N		See D070B DRIVER'S SEAT COUPLING (REAR)	6
8	2,5	N		See D071B PASSENGER SEAT COUPLING (REAR)	6
9	2,5	N		See D031 PASSENGER FRONT DOOR COUPLING	9
10	2,5	NR		See D030 DRIVER'S FRONT DOOR COUPLING	9
11	1	N		See D071B PASSENGER SEAT COUPLING (REAR)	3
12	0,35	NZ		See D070B DRIVER'S SEAT COUPLING (REAR)	10
13	0,5	N		See D071B PASSENGER SEAT COUPLING (REAR)	27
14	0,35	NZ		See I033 SWITCH ON BOOT EXTERIOR HANDLE	4
15	0,35	NR		See D031 PASSENGER FRONT DOOR COUPLING	10
16	0,35	NZ		See D035 LEFT REAR DOOR COUPLING	C2
17	0,5	N		See D030 DRIVER'S FRONT DOOR COUPLING	27
18	0,35	NZ		See D071B PASSENGER SEAT COUPLING (REAR)	10
