G010 front courtesy light

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Interior lights › G010 front courtesy light

Connectors and pin-outsG010 front courtesy light

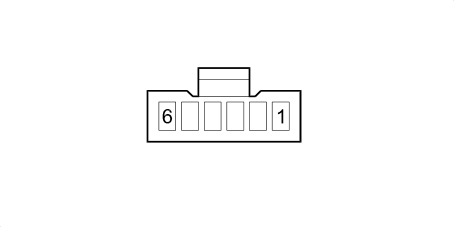

G010 FRONT COURTESY LIGHT

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	MZ		See M001E BODY COMPUTER (REAR)	30
2	0,35	LZ		See M001E BODY COMPUTER (REAR)	28
3	0,5	VN		See M001E BODY COMPUTER (REAR)	21
5	0,5	HN		See M001E BODY COMPUTER (REAR)	37
6	0,5	RV		See D097J SHORT CIRCUIT COUPLING (REAR)	4
