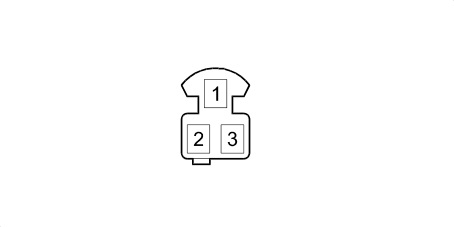

I011 BOOT RELEASE SWITCH
| Wiring | Colour |
|---|---|
| See 25 REAR | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,35 | MN | See M001E BODY COMPUTER (REAR) | 24 | |
| 2 | 0,5 | N | See C030 LEFT REAR EARTH | 17 | |
| 3 | 0,35 | LN | X | See M001E BODY COMPUTER (REAR) | 36 |
| See G040B LUGGAGE COMPARTMENT COURTESY LIGHT (REAR) | 1 | ||||
| See G040A LUGGAGE COMPARTMENT COURTESY LIGHT (REAR) | 1 | ||||
