I031 clutch pedal switch
- Make
- Fiat
- Model
- Croma Factory Service Manual
- Year
- 2005–2010
- Section
- Switches › I031 clutch pedal switch
Connectors and pin-outsI031 clutch pedal switch

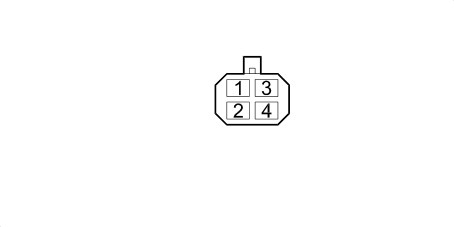

I031 CLUTCH PEDAL SWITCH
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | 0,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD) | 9 | |
| 4 | 0,5 | HM | See D097C SHORT CIRCUIT COUPLING (DASHBOARD) | 8 | |
