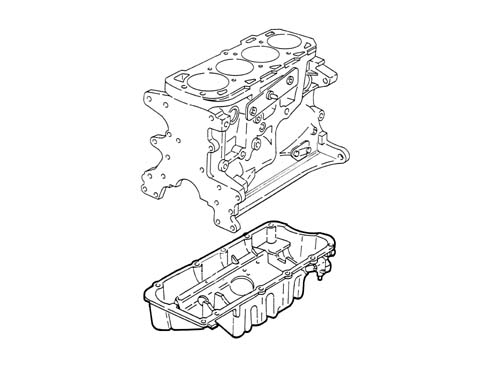

CRANKCASE OIL SUMP

Description 1020A

1.9 JTD 16v

CONSTRUCTION SPECIFICATIONS

This is a structural part of the engine that performs a mechanical role as well as containing the engine oil because it is directly connected to the intermediate shaft mount.

The oil sump is in aluminium alloy and contains special partitions that prevent the engine oil slopping around too much when the pump could end up drawing in air.

A reinforcement plate fitted in the lower part of the sump near the splines for housing the front exhaust pipe section contains the exhaust pipe in the case of violent impact.

1.9 JTD 8v

CONSTRUCTION SPECIFICATIONS

This is a structural part of the engine that performs a mechanical role as well as containing the engine oil because it is directly connected to the intermediate shaft mount.

The oil sump is in aluminium alloy and contains special partitions that prevent the engine oil slopping around too much when the pump could end up drawing in air.

A reinforcement plate fitted in the lower part of the sump near the splines for housing the front exhaust pipe section contains the exhaust pipe in the case of violent impact.

2.4 JTD 20v

CRANKCASE SUMP

Specifications

Function

This is a structural part of the engine that performs a mechanical role as well as containing the engine oil because it is directly connected to the intermediate shaft mount.

Type

The oil sump is in aluminium alloy and contains special partitions that prevent the engine oil slopping around too much when the pump could end up drawing in air.

A reinforcement plate fitted in the lower part of the sump near the splines for housing the front exhaust pipe section contains the exhaust pipe in the case of violent impact.
