INTRODUCTION - ENGINE AIR SUPPLY CIRCUIT

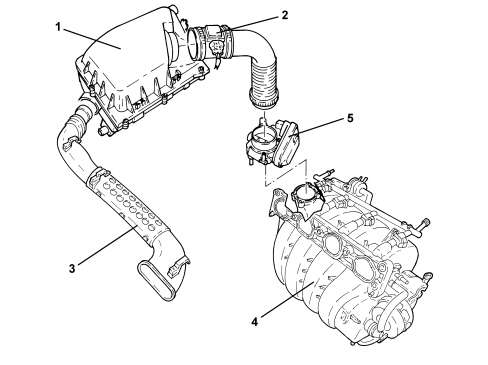

2.2

Assembly view

1. Air filter assembly

2. Flow meter

3. Cold air intake

4. Intake chamber

5. Throttle body

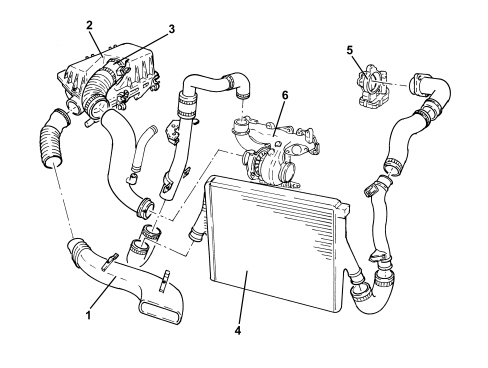

1.9 JTD 16v

AIR SUPPLY SYSTEM

1. Cold air intake

2. Air filter assembly

3. Air flow meter

4. Air-air heat exchanger (intercooler)

5. Throttle body

6. Turbocharger

1.9 JTD 8v

AIR SUPPLY SYSTEM

1. Cold air intake

2. Air filter assembly

3. Air flow meter

4. Air-air heat exchanger (intercooler)

5. Throttle body

6. Turbocharger

2.4 JTD 20v

AIR SUPPLY SYSTEM

1. Cold air intake

2. Air filter assembly

3. Air flow meter

4. Turbocharger

5. Air-air heat exchanger (intercooler)

6. Throttle body

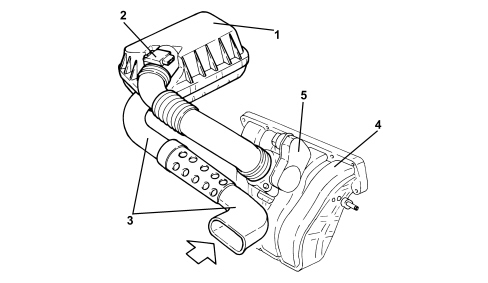

1.8

VIEW OF ASSEMBLY

1. Air filter

2. Air flow meter

3. Cold air intake

4. Modular intake chamber

5. Throttle body
