CAMSHAFT IN CYLINDER HEAD - R.R. WITH HEAD REMOVED

Operation 1036B14 · OVERHEAD CAMSHAFT (1) IN CYLINDER HEAD (1)

1.9 JTD 8v

Removing

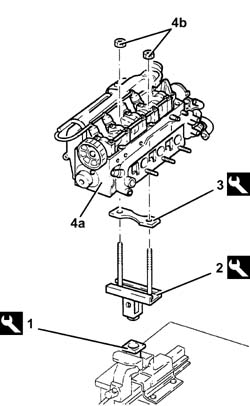

1. Place the tool in the vice.

2. Fit the tool.

3. Fit the tool.

4. Position the cylinder head (4a) on the support tools and fasten it using the nuts (4b).

1. Undo the bolts (1a) and remove the vacuum unit (1b) complete with O-ring (1c).

1. Undo the driven toothed pulley bolt (1a) using the tools (1b).

2. Remove the toothed driven pulley.

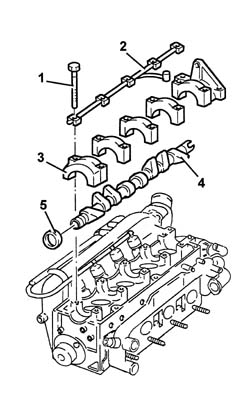

1. Undo the camshaft cap bolts.

2. Remove the camshaft support lubrication pipe.

3. Remove the camshaft caps.

4. Remove the camshaft.

5. Remove the camshaft front oil seal.

Refitting

Place the camshaft in its housing.

Place the camshaft caps in their housings.

Place the camshaft supports lubrication pipe in its housing.

Tighten the camshaft cap bolts to the recommended torque.

1. Fit the a new crankshaft front oil seal (1a) using the tool (1b).

Place the toothed driven pulley in its housing.

Tighten the toothed driven pulley bolt to the recommended torque using the tools.

Place the vacuum unit in its housing with the O-ring and secure it by tightening the bolts to the recommended torque.

Remove the cylinder head from the support tools.

Remove the cylinder head support tools from the vice and put them down.
