HYDRAULIC CLUTCH SYSTEM - BLEED AIR

Operation 0010T67 · VEHICLE FLUIDS

1.8, 2.2, 1.9 JTD 8v, 1.9 JTD 16v

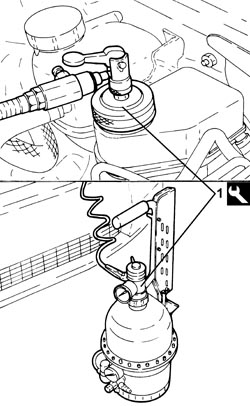

1. Remove the brake/clutch fluid reservoir cap and connect the equipment to the reservoir.

1. Remove the protective plug and connect the recovery device (pipe and reservoir) to the clutch hydraulic actuator bleed.

2. Open the bleed valve on the clutch hydraulic actuator.

- Open the fluid reservoir tap slowly.

- Wait for all the air in the hydraulic system to escape.

- Close the bleed valve on the clutch slave cylinder and refit the protective cap in its seat.

- Remove the recovery device.

- Remove the bleed equipment.

- Check that the cluch disengages and that the gears engage properly.

- Check the fluid level in the brake - clutch reservoir is correct.
