REAR SUSPENSION STABILIZER BAR - R+R
Removing
- Position the vehicle on a lift.
Op. 4450B13 REAR WHEELS (TWO) - R.R
Op. 4420A40 L/H OR R/H REAR SUSPENSION COIL SPRING (ONE) - R+R
(both).
Op. 1076B30 FRONT EXHAUST SILENCER - R + R
Op. 1076B20 REAR EXHAUST SILENCER - R + R
Op. 4420D42 REAR SUSPENSION BEAM - R R

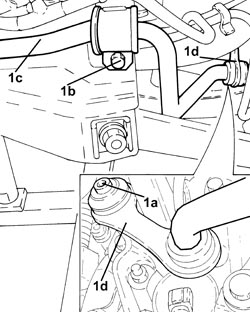

1. Unscrew bolts (1a) and (1b), the remove stabiliser bar (1c) with joints (1d).
Refitting
- Lubricate the damping rings on the stabiliser bar with silicone grease.

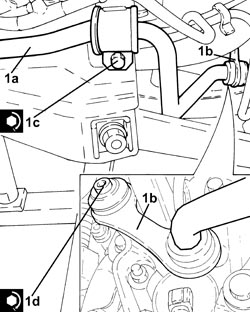

1. Position the stabiliser bar (1a), complete with joints (1b), in its housing and secure it tightening the bolts (1c) and (1d) to the recommended torque.
Take care to position the stabiliser bar correctly when installing.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Rear suspension anti-roll bar | Bolt (to be replaced) | M8 | (crossmember side) 2.3 - 2.8 + 30° |
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Rear suspension anti-roll bar joint | Bolt (to be replaced) | M10 | (steering knuckle side) 4.1 - 5.0 + 60° |
Op. 4420D42 REAR SUSPENSION BEAM - R R
Op. 1076B20 REAR EXHAUST SILENCER - R + R
Op. 1076B30 FRONT EXHAUST SILENCER - R + R
Op. 4420A40 L/H OR R/H REAR SUSPENSION COIL SPRING (ONE) - R+R
(both).
Op. 4450B13 REAR WHEELS (TWO) - R.R
- Remove the vehicle from the lift.
