Fuel filler pipe - r + r

Operation 1040A30 · FUEL TANK AND COMPONENTS

1.4 8v, 1.6 16v

Removing

Disconnect the battery negative terminal.

Place the car on a ramp.

Raise the vehicle.

Op. 7055B43 REAR WHEEL ARCH LINER (ONE) LEFT OR RIGHT - R.R.

1. Undo the retaining bolts.

2. Remove the pipe protection bracket

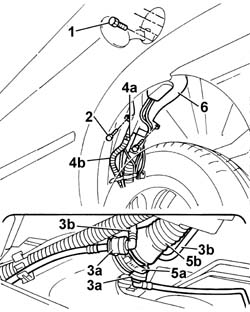

1. Undo the bolts fixing the fuel filler to the bodyshell.

2. Undo the two bolts fixing the filler pipe to the bodyshell.

3. Disconnect the antievaporation pipes (3b) from the rapid connectors (3a)

4. Open the band (4a) and disconnect the reflux pipe (4b).

Release the anti-evaporation pipes from the plastic retaining bands.

5. Open the band (5a) and disconnect the flexible section of the fuel filler pipe (5b) from the tank.

6. Remove the fuel filler pipe assembly.

Refitting

Position the fuel filler pipe assembly.

Connect the flexible section of the fuel filler pipe to the tank and connect it using the special band.

Connect the reflux pipe using a new band.

Connect the rapid connectors for the anti-evaporation pipes.

Tighten the bolts fixing the filler pipe to the bodyshell.

Tighten bolts fixing the fuel filler to the bodyshell.

Secure the pipes to the plastic retaining bands.

Fit the pipe protection bracket and tighten the fixing bolts.

Op. 7055B43 REAR WHEEL ARCH LINER (ONE) LEFT OR RIGHT - R.R.

Lower the vehicle.

Remove the vehicle from the ramp.

Connect the battery negative terminal.
