R.R. FRONT BUMPER

Operation 7210E10 · EXTERNAL PARTS

Removing

- Disconnect the negative battery terminal.

Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R

Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R

- < R1 > [both sides]

1. Undo the fixing bolts.

2. Remove the front grille.

1. Disconnect the electrical connection (1a) for fog lights (1b).

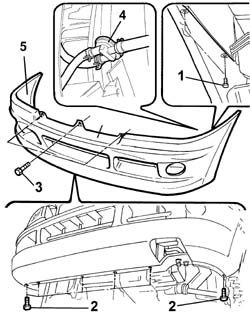

1. Undo the bolts fixing the front bumper to the front wings.

2. Undo the bolts fixing the front bumer to the lower radiator supporting crossmember.

- Lower the lift.

3. Undo the bolts securing the bumper to the upper crossmember.

4. Disconnect the headlamp washer jets water supply pipe.

5. Remove the front bumper from the vehicle.

Refitting

- Fit the front bumper on the vehicle.

- Connect the headlamp washer jets water supply pipe.

- Tighten the bolts securing the bumper to the upper crossmember.

- Raise the lift.

- Tighten the bolts fixing the front bumer to the lower radiator supporting crossmember.

- Tighten the bolts fixing the front bumper to the front wings.

- Connect the electrical connection for the fog lights.

- Fit the front grille and tighten the bolts.

Op. 7055B54 UNDER-ENGINE GUARD - R R

Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R

- < R1 > [both sides]

Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R

- Connect the negative battery terminal.
