R.R. FRONT SIDE DOOR

Operation 7210E36 · EXTERNAL PARTS

Removing

- Disconnect the negative battery terminal.

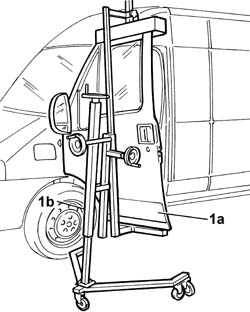

1. Position a suitable support (1b) on the door (1a).

Op. 7040A20 LEFT DASHBOARD LOWER TRIM - R.R.

- Disconnect the connectors for the passenger side side door wiring.

- Fasten a sensor to one of the passenger side door wiring connectors.

- Release the door wiring from the passenger compartment.

- Release the sensor from the door wiring connector.

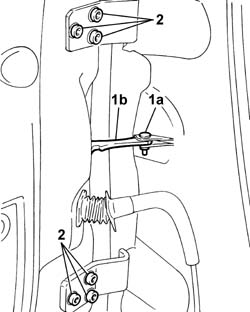

1. Undo the bolt (1a) fixing the door check strap (1b) to the bodyshell.

2. Undo the bolts fixing the door hinges.

- Remove the front side door.

Refitting

- Offer up the door in the fitting position, using a suitable support.

- Fasten the door check strap to the bodyshell tightening the fixing bolt.

- Fasten the door hinges tightening the fixing bolts.

- Secure the sensor to one of the door wiring connectors.

- Fit the door wiring in the special passages making use of the sensor.

- Release the sensor from the door wiring connector.

- Connect the electrical connectors for the passenger side door wiring.

Op. 7040A20 LEFT DASHBOARD LOWER TRIM - R.R.

Op. 7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT

- Connect the negative battery terminal.
