BRAKE PEDAL - R R FOR RHD VERSIONS

Operation 3330B23 · PEDAL UNIT

Removing

- Position the vehicle on the lift.

- Disconnect the negative battery lead.

1. Lift up the steering wheel adjustment lever.

2. Undo the panel fixing bolts.

3. Remove the panel, releasing it from the inner retainers.

Op. 1068A21 ACCELERATOR PEDAL WITH INTEGRATED POTENTIOMETER - R.R. FOR RIGHT DRIVE VERSIONS

Op. 5550D10 BRAKE LIGHT SWITCH - R+R

- Proceed from the inside of the passenger compartment.

1. Remove the spring fastening the brake servo push rod to the brake pedal.

2. Remove the pin from the brake pedal.

3. Undo the nuts fixing the brake servo to the pedal assembly.

- Move the pedal assembly as far away as possible from the bodyshell.

1. Open the bonnet and undo the pedal assembly fixing nuts, located above the brake servo.

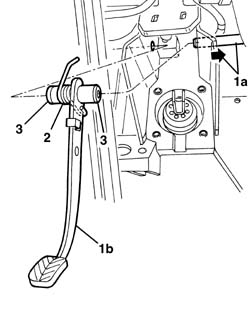

1. Working from inside the passenger compartment, move the pedal support slightly backwards and extract the pin (1a) until the brake pedal (1b) is removed.

2. Keep the pedal return spring.

3. If necessary, extract the bushes (which are a press-fit).

Refitting

- Check that the pedal assembly is not damaged.

- If the bushes have been removed, refit them (press-fit).

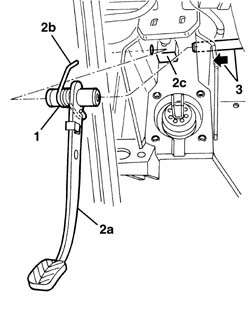

1. Position the return spring on the pedal.

2. Place the brake pedal (2a) in position with the end (2b) of the return spring fitted under the pedal support mounting (2c).

3. Fit the brake pedal pin in the housing.

- Tighten the pedal assembly fixing nuts.

- Close the bonnet.

- Position the brake servo rod on the brake pedal and insert the pin in the housing, then secure it using the retaining spring.

Op. 5550D10 BRAKE LIGHT SWITCH - R+R

Op. 1068A21 ACCELERATOR PEDAL WITH INTEGRATED POTENTIOMETER - R.R. FOR RIGHT DRIVE VERSIONS

- Position the panel, engaging the inner retainers.

- Tighten the panel fixing bolts.

- Lock the steering wheel adjustment lever.

- Check that the brake pedal and the brake servo are working properly.

- Connect the negative battery lead.

- Remove the vehicle from the lift.
