BRAKE PEDAL - R+R MANUAL GEARBOX VERSIONS

Operation 3330B22 · PEDAL UNIT

Removing

1. Lift up the steering wheel adjustment lever.

2. Undo the panel fixing bolts.

3. Remove the panel, releasing it from the inner retainers.

- Remove the brake light switch

1. Release the retaining spring (1a) and the connecting rod (1b) for the brake servo rod to the brake pedal (1c).

2. Undo the pedal assembly fixing nuts.

1. Open the bonnet and undo the pedal assembly fixing nuts, located above the brake servo.

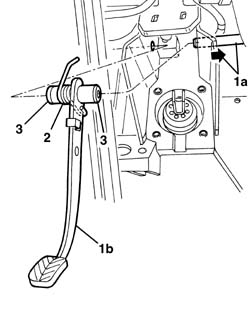

1. Working from inside the passenger compartment, move the pedal support slightly backwards and extract the pin (1a) until the brake pedal (1b) is removed.

2. Keep the pedal return spring.

3. If necessary, extract the bushes (which are a press-fit).

Refitting

- Check that the pedal assembly is not damaged.

- If the bushes have been removed, refit them (press-fit).

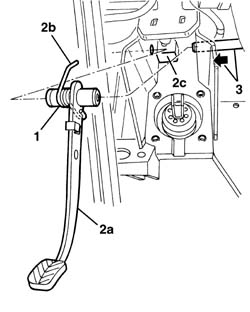

1. Position the return spring on the pedal.

2. Place the brake pedal (2a) in position with the end (2b) of the return spring fitted under the pedal support mounting (2c).

3. Fit the brake pedal pin in the housing.

- Tighten the pedal assembly fixing nuts.

- Close the bonnet.

- Position the brake servo rod on the brake pedal and insert the pin in the housing, then secure it using the retaining spring.

- Fit the brake light switch

- Position the panel, engaging the inner retainers.

- Tighten the panel fixing bolts.

- Lock the steering wheel adjustment lever.

- Check that the brake pedal and the brake servo are working properly.

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Op. 1068A20 ACCELERATOR PEDAL WITH BUILT-IN POTENTIOMETER - R R

2.0 16V

- Remove the accelerator pedal.

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Op. 1068A20 ACCELERATOR PEDAL WITH BUILT-IN POTENTIOMETER - R R

2.0 16V

- Fit the accelerator pedal.
