VACUUM PUMP - R+R

Operation 3330D30 · BRAKE VACUUM SYSTEM

2.0 JTD 8V

Removing

Op. 7055B54 UNDER-ENGINE GUARD - R R

See in Op. 1048A21

See in Op. 1048A50

Op. 1048B16 PIPES AND/OR ELBOW BETWEEN TURBOCHARGER AND THROTTLE CASING - R.R.

Op. 1048B12 RIGID PIPE CARRYING AIR BETWEEN TURBOCHARGER AND INLET MANIFOLD - R+R

See in Op. 1080C17

1. Disconnect the electrical connection for the heater plugs control unit.

2. Undo the nut fixing the heater plugs control unit.

3. Undo the nuts fixing the bracket to the partition.

4. Move the bracket complete with solenoid valves and heater plugs control unit to the side.

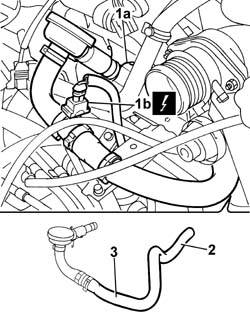

1. Press the retaining spring (1a) and disconnect the electrical connection (1b) for the engine oil vapour pipe.

2. Disconnect the engine oil vapour pipe from the air intake pipe between the filter and the turbocharger.

3. Remove the oil vapour pipe.

1. Open the bands and release the heater coolant pipe.

1. Disconnect the recirculation pipe from the thermostat.

2. Undo the fixing bolts at the ends of the rigid pipe.

- Disconnect the coolant reservoir recirculation pipe from the rigid pipe.

3. Remove the rigid pipe from the housing.

1. Disconnect the vacuum pipe from the brake servo.

1. Undo the fixing bolts (1a) and remove the vacuum unit (1b) from the housing in the cylinder head.

Refitting

1. Lubricate and, if necessary, replace the seals (1a) and the oil filter (1b).

2. Fit the vacuum unit and tighten the bolts (2a) and the nut (2b) to the recommended torque.

- Connect the vacuum pipe to the brake servo.

- Fit the rigid pipe in the housing on the cylinder head.

- Connect the coolant reservoir recirculation pipe to the rigid pipe and tighten the fixing bolts.

- Connect the recirculation pipe to the thermostat.

- Position the heater coolant pipe.

- Connect the electrical connection for the engine oil vapour pipe.

- Connect the engine oil vapour pipe to the air intake pipe between the filter and the turbocharger and to the tappet cover.

- Fit the bracket complete with solenoid valves and heater plugs control unit.

- Tighten the nut fixing the heater plugs control unit.

- Connect the electrical connection for the heater plugs control unit.

See in Op. 1080C17

Op. 1048B12 RIGID PIPE CARRYING AIR BETWEEN TURBOCHARGER AND INLET MANIFOLD - R+R

Op. 1048B16 PIPES AND/OR ELBOW BETWEEN TURBOCHARGER AND THROTTLE CASING - R.R.

See in Op. 1048A50

See in Op. 1048A21

Op. 7055B54 UNDER-ENGINE GUARD - R R

2.8 JTD 8V

See in Op. 1020D14

Removing

Op. 7055B54 UNDER-ENGINE GUARD - R R

1. Undo the fixing bolts.

2. Open the band and disconnect the pipe from the vacuum unit.

3. Remove the vacuum unit from the lower part of the engine compartment.

Refitting

- Fit the vacuum unit and tighten the fixing bolts.

- Connect the vacuum pipe to the vacuum unit.

Op. 7055B54 UNDER-ENGINE GUARD - R R
