INTERMEDIATE HOSE TO REAR BRAKES - R+R

Operation 3330E42 · HYDRAULIC BRAKE SYSTEM PIPES

Removing

- Position the vehicle on a lift.

- Raise the vehicle.

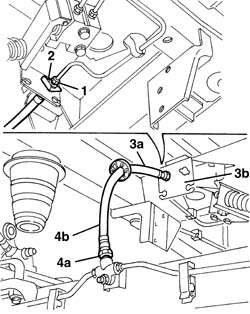

1. Working underneath the vehicle in the area of the rear axle, undo the connector for the rigid brake pipe and let the hydraulic fluid drain into a suitable container.

2. Release the retaining spring.

3. Release the flexible pipe (3a) from the housing in the support (3b).

4. Undo the threaded connector (4a) and keep the flexible brake pipe (4b).

Refitting

- Check that the flexible pipe is not damaged.

- Tighten the threaded connector for the flexible pipe.

- Fit the flexible pipe in the support housing.

- Fit the retaining spring on the flexible brake pipe.

- Tighten the connector for the rigid brake pipe.

Op. 0010T65 HYDRAULIC BRAKE SYSTEM BLEED AIR

- Remove the vehicle from the lift.

- Check that the brakes are working and that the system is not leaking.
