CONSTRUCTION SPECIFICATIONS

2.0 16V · GPL, Methane

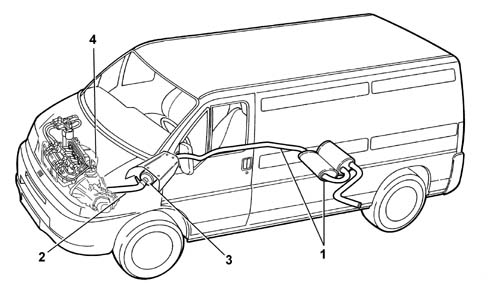

Engine exhaust gases flow through the manifold to catalytic converter (3) (see 1080).The rear exhaust pipe section consists of two silencers (1).Special guards prevent heat radiating toward the body.The various components are supported by mounts and flexible rings secured to the underbody.
