EXHAUST PIPE REAR HEAT SHIELD - R.R.

Operation 1076A52 · EXHAUST PIPE FASTENINGS AND PROTECTIONS

2.0 16V

Removing

Position the vehicle on the lift.

Position a hydraulic device underneath the exhaust pipe to support it.

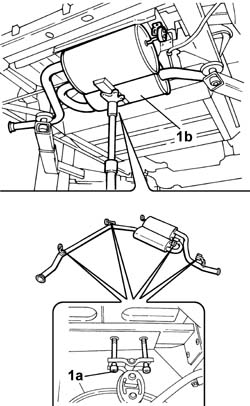

1. Undo the bolts (1a) for the brackets with the flexible buffer supporting the exhaust silencer (1b) and secure the exhaust pipe.

Remove the hydraulic support.

1. Undo the retaining bolts (1a) and remove the heat shield (1b).

Refitting

Fit the heat shield and tighten the fixing bolts.

Raise the exhaust pipe and tighten the bolts fixing the brackets with flexible buffers to the bodyshell to torque.

Remove the vehicle from the lift.
