GPL TANK MOUNTING BRACKET -R.R.
Removing
Position the vehicle on the lift.
Op. 1043E12 GPL TANK GUARD PROTECTION R R

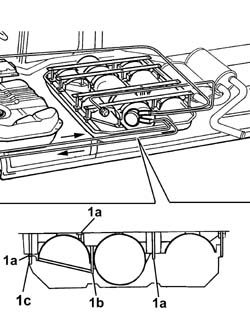

1. Undo the spacers (1a) and the nuts (1b) fixing the LPG tank mounting bracket.
2. Remove the LPG tank mounting bracket.
Proceed in the same way for the other brackets. If the brackets are all being removed together, the instructions in the cycle for removing LPG tank must be followed.
Refitting
Fit the LPG tank mounting bracket and tighten the nuts.
1. Tighten the fixing nuts (1a) and (1b) to torque and then the spacers (1c) securing the LPG canister mounting bracket to the bodyshell.
| Value daNm | Fastening | Component | Ø | |
|---|---|---|---|---|
| 1a | 4 | Nut | on floor | M12 X 1.25 |
| Value daNm | Fastening | Component | Ø | |
|---|---|---|---|---|
| 1b | 8 | Nut | M12 X 1.25 |
| Value daNm | Fastening | Component | Ø | |
|---|---|---|---|---|
| 1c | 4 | Spacer | M12 X 1.25 |
Op. 1043E12 GPL TANK GUARD PROTECTION R R
Remove the vehicle from the lift.
