REAR SEAT CUSHION TRIM - R.R.

Operation 7050D20 · REAR SEAT TRIM/PADDING

Removing

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

1. Disconnect the hooks (1a) from the perimeter cord (1b) tensioning the cover.

2. Release the cover (2a) from all the frame perimeter retainers (2b).

3. Separate the cover and upholstery (3a) from the cushion frame (3b).

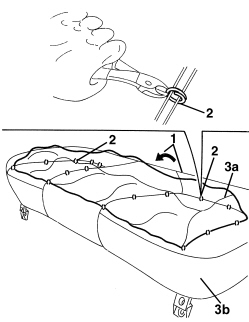

1. Fold the cushion over and release the cover along the entire perimeter of the upholstery.

2. Using clippers, cut all the upper retainers for the cushion cover.

3. Separate the cushion cover (3a) from the upholstery (3b).

Refitting

- Check that the cushion cover is not damaged.

- Position the cushion cover on the upper part of the upholstery and attach the retainers using special pliers.

Mould the cover on the upholstery during the various refitting stages.

- Position the metal frame on the upholstery.

- Fit the cover on the upholstery and on the frame, along the entire perimter of the cushion.

1. Fasten trim (1a) to the frame perimeter retainers (1b).

2. Attach the cover (1a) to all the other frame perimeter retainers (2a).

3. Pull the cover perimeter tensioning cord (3a) and connect the terminal hooks (3b) to the frame housings.

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.
