SPLIT REAR SEAT LEFT BACKREST - R.R.

Operation 7050A13 · REAR SEAT ASSEMBLY

Removing

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7050A15 SPLIT REAR SEAT RIGHT BACKREST - R.R.

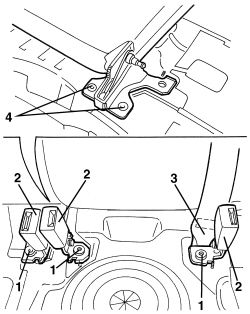

1. Undo the bolts.

2. Remove the rear seat belt mounting rods.

3. Move the end of the centre rear seat belt.

4. Working at the rear of the backrest, undo the rear bracket fixing bolts.

1. Using the handle (1a), release the backrest (1b) and rotate it downwards through half its travel (about 45°).

1. Remove the backrest (1a) releasing the side retainer (1b) from the housing (1c).

Refitting

- Check that the backrest is not damaged.

- Position the backrest and attach the side retainer in the housing.

- Lift up the backrest and attach it to the retainer.

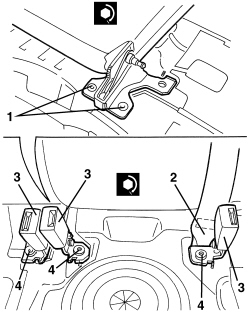

1. Tighten the rear bracket fixing bolts.

2. Place the end of the centre rear seat belt in position.

3. Place the rear seat belt mounting rods in position.

4. Tighten the bolts.

- Check that the backrest is correctly attached to the striker.
