INTRODUCTION - REAR DISC BRAKES

1.4 16v, 1.9 Multijet

CONSTRUCTION SPECIFICATIONS

The versions with the 1.9 Multijet and 1.4 16v SPORT engines are fitted with rear disc brakes. The dimensions of the disc are 264x10 mm with Bosch BIR III calipers and 36 mm pistons with automatic recovery of the clearance. The brake calipers have a braking mechanism that can also be operated mechanically using the handbrake lever.

See

See descriptions 3380 HANDBRAKE

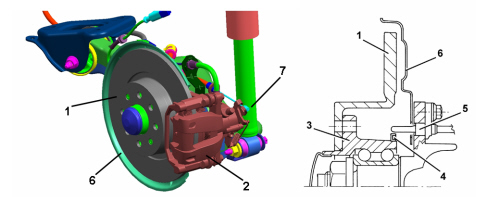

1. Brake disc

2. Brake caliper

3. Hub outer ring

4. Multipolar magnetic ring

5. ABS active sensor

6. Guard

7. Mounting for handbrake rod.
