IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.

Operation 5520A18 · IGNITION SWITCH

Removing

Follow the safety instructions for this operation meticulously

Op. 5580C18 AIR BAG MODULE - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

- Place the steering wheel in a central position with the wheels straight.

Op. 7040A26 STEERING COLUMN TRIM - R+R

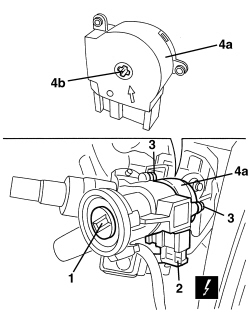

1. Insert the ignition key and turn ON.

2. Disconnect the electrical connection.

3. Undo the bolts.

4. Remove the contact holder block (4a) by removing its seat (4b) from the ignition.

Refitting

- Check that the contact holder block is not damaged.

- Position the contact holder block and connect its seat to the ignition.

- Tighten the bolts.

- Connect the electrical connection.

- Turn the ignition key and remove.

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5580C18 AIR BAG MODULE - R+R
