INTRODUCTION - EXHAUST PIPES AND SILENCERS

1.9 Multijet

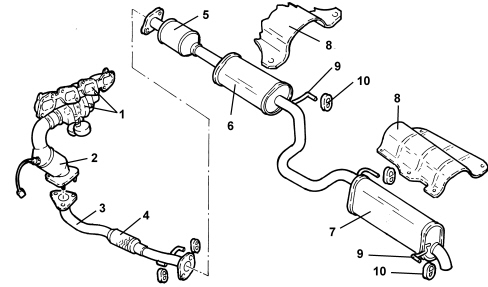

The engine exhaust gases flow through the exhaust manifold (1) to the turbocharger and then to the catalytic preconverter (2).

There is a flexible element (4) in the front section of the exhaust pipe (3) to restrict the transmission of vibrations.

The rear section of the exhaust comprises the catalytic converter (5) and two silencers (6) and (7). Special protections (8) limit heat radiation to the body.

The various components are supported by means of supports (9) and flexible seals (10) fastened to the underbody.

1.2 8v, 1.4 8v

CONSTRUCTION SPECIFICATIONS

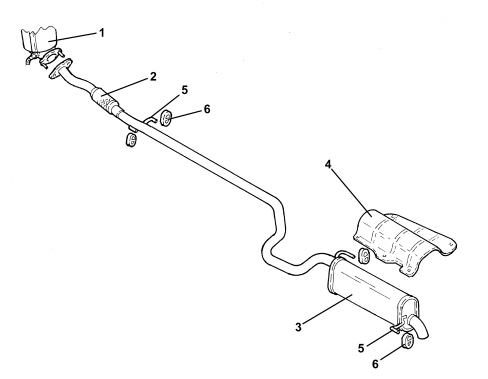

The engine exhaust gases flow to the manifold - three-way catalytic converter assembly (1).

There is a flexible element (2) in the front section of the exhaust pipe to restrict the transmission of vibrations.

The rear exhaust pipe section consists of a silencer (3).

A special guard (4) prevents heat radiating toward the body.

The various components are supported by means of supports (5) and flexible seals (6) fastened to the underbody.
