Boot lid opening lever - r+r

Operation 7025A24 · Bonnet lid

Removing

- 7040A37 fuse box cover - r r

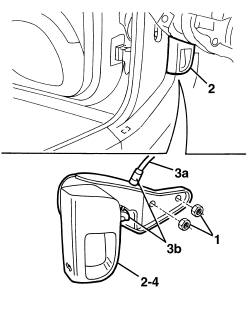

1. Undo the nuts fixing the lever

2. Support the lever slightly.

3. Disconnect the cable (3a) from the retainers (3b).

4. Keep the lever.

Refitting

Check that the lever is undamaged.

Connect the cable to the retainers.

Position the lever and fasten it using the nuts.

- 7040A37 fuse box cover - r r
