Engine compartment SEAL - R.R.
- Make
- Fiat
- Model
- Idea Factory Service Manual
- Year
- 2003–2012
- Section
- Compartment lids › Engine compartment SEAL - R.R.
Body fittingsEngine compartment SEAL - R.R.
Engine compartment SEAL - R.R.
Removing
Open the bonnet lid.

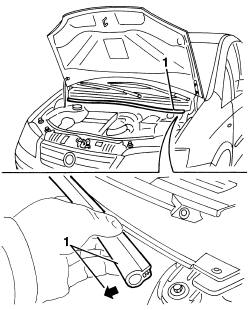

1. Release the seal starting at one end.
Refitting
Check that the seal is intact and shows no signs of damage.
Position the seal and fit it in place starting at one end.
Check that the contact between the seal and the bonnet lid is correct.
