Fuel filler pipe - r + r

Operation 1040A30 · Fuel tank and components

1.4 16v

Removing

Position the vehicle on the ramp

Proceed with removal - 4450B08 right rear wheel r r

Proceed with removal - 7055B45 right hand rear supplementary wheel arch - r+r

1. Release the safety device on the fuel filler cap from the bodyshell.

2. Undo the fuel filler pipe retaining bolts.

1.3 JTD 16v

Removing

Position the vehicle on the ramp

Proceed with removal - 4450B08 right rear wheel r r

Proceed with removal - 7055B45 right hand rear supplementary wheel arch - r+r

1. Release the safety device for the fuel filler cap from the bodyshell.

2. Undo the fuel filler pipe retaining bolts.

1.4 16v

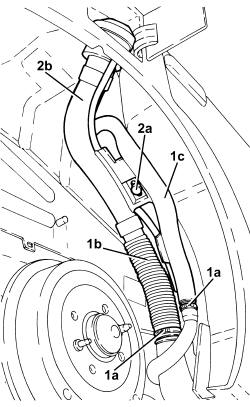

1. Loosen the bands (1a) and disconnect the fuel filler pipe (1b) and the reflux pipe (1c) from the tank.

2. Undo the fixing bolt (2a) and remove the fuel filler pipe assembly (2b).

1.3 JTD 16v

1. Loosen the bands (1a) and disconnect the fuel filler pipe (1b) and reflux pipe (1c) from the tank.

2. Undo the fixing bolt (2a) and remove the fuel filler pipe assembly (2b).

1.4 16v

Refitting

Replace the complete fuel filler pipe and secure it with its bolts

Connect the fuel filler pipe and the reflux pipe and secure them using new bands.

Fasten the safety device for the fuel filler cap to the bodyshell.

Proceed with refitting - 7055B45 right hand rear supplementary wheel arch - r+r.

Proceed with refitting - 4450B08 right rear wheel r r.

Remove the car from the ramps.

1.3 JTD 16v

Refitting

Replace the complete fuel filler pipe and secure it with its bolts

Connect the fuel filler pipe and the return pipe and secure them using new bands.

Fasten the fuel filler cap safety device to the bodyshell.

Proceed with refitting - 7055B45 right hand rear supplementary wheel arch - r+r.

Proceed with refitting - 4450B08 right rear wheel r r.

Remove the car from the ramps.
