Fuel filler pipe union sleeve - r + r

Operation 1040A32 · Fuel tank and components

1.4 16v

Removing

Position the vehicle on the ramp

Proceed with removal - 4450B08 right rear wheel r r

Proceed with removal - 7055B45 right hand rear supplementary wheel arch - r+r

1. Undo the bolt securing the fuel filler pipe to the body.

2. Loosen the band (2a) and disconnect the fuel filler pipe (2b) from the tank.

3. Loosen the band (3a) and disconnect return pipe (3b).

4. Remove the sleeve joining the fuel filler pipe to the tank.

1.3 JTD 16v

Removing

Position the vehicle on the ramp

Proceed with removal - 4450B08 right rear wheel r r

Proceed with removal - 7055B45 right hand rear supplementary wheel arch - r+r

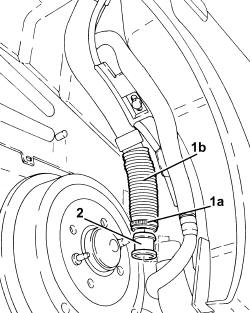

1. Loosen the band (1a) and disconnect the fuel filler pipe (1b) from the tank.

2. Remove the sleeve joining the fuel filler pipe to the tank.

1.4 16v

Refitting

Refit the hose joining the fuel filler pipe to the tank in its housing.

Connect the reflux pipe and secure it using the retaining band.

Connect the fuel filler pipe to the tank and secure it using the band.

Tighten the bolt securing the fuel filler pipe to the bodyshell.

Proceed with refitting - 7055B45 right hand rear supplementary wheel arch - r+r.

Proceed with refitting - 4450B08 right rear wheel r r.

Remove the car from the ramps.

1.3 JTD 16v

Refitting

Refit the hose joining the fuel filler pipe to the tank in its housing.

Connect the fuel filler pipe to the tank and secure it using a new band.

Proceed with refitting - 7055B45 right hand rear supplementary wheel arch - r+r.

Proceed with refitting - 4450B08 right rear wheel r r.

Remove the car from the ramps.
