00 Introduction and technical dataDifferential
F1
| GEARBOX | Make | BE4/5J | AL4 | ||
|---|---|---|---|---|---|
| Synchronizers | Baulk ring type | – | |||
| Gears | helical teeth | – | |||
| straight teeth | – | ||||
| Gear ratios | 1st | 3.454 (11/38) | N.A. | ||
| 2nd | 1.870 (23/43) | N.A. | |||
| 3rd | 1.280 (25/32) | N.A. | |||
| 4th | 0.951 (41/39) | N.A. | |||
| 5th | 0.795 (44/35) | – | |||
| R | 3.333 (12/40) | N.A. | |||
DIFFERENTIAL
F2
| Ratio crown wheel and pinion | 4.429 (14/62) | N.A. | ||||
|---|---|---|---|---|---|---|
| Ratio at the wheels | 1st | 15.298 | – | |||
| 2nd | 8.282 | – | ||||
| 3rd | 5.669 | – | ||||
| 4th | 4.212 | – | ||||
| 5th | 3.521 | – | ||||
| R | 14.762 | – | ||||

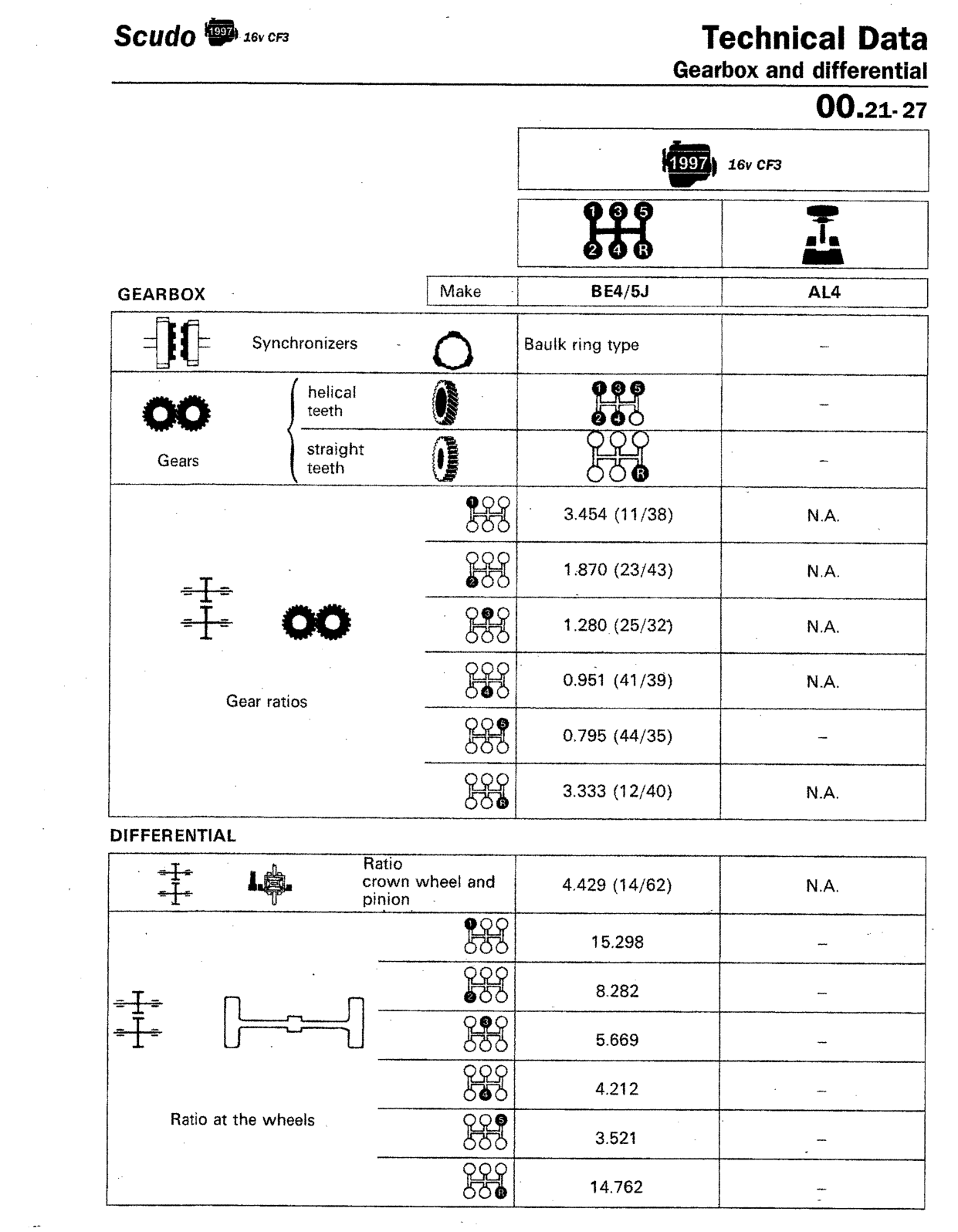

Original page
