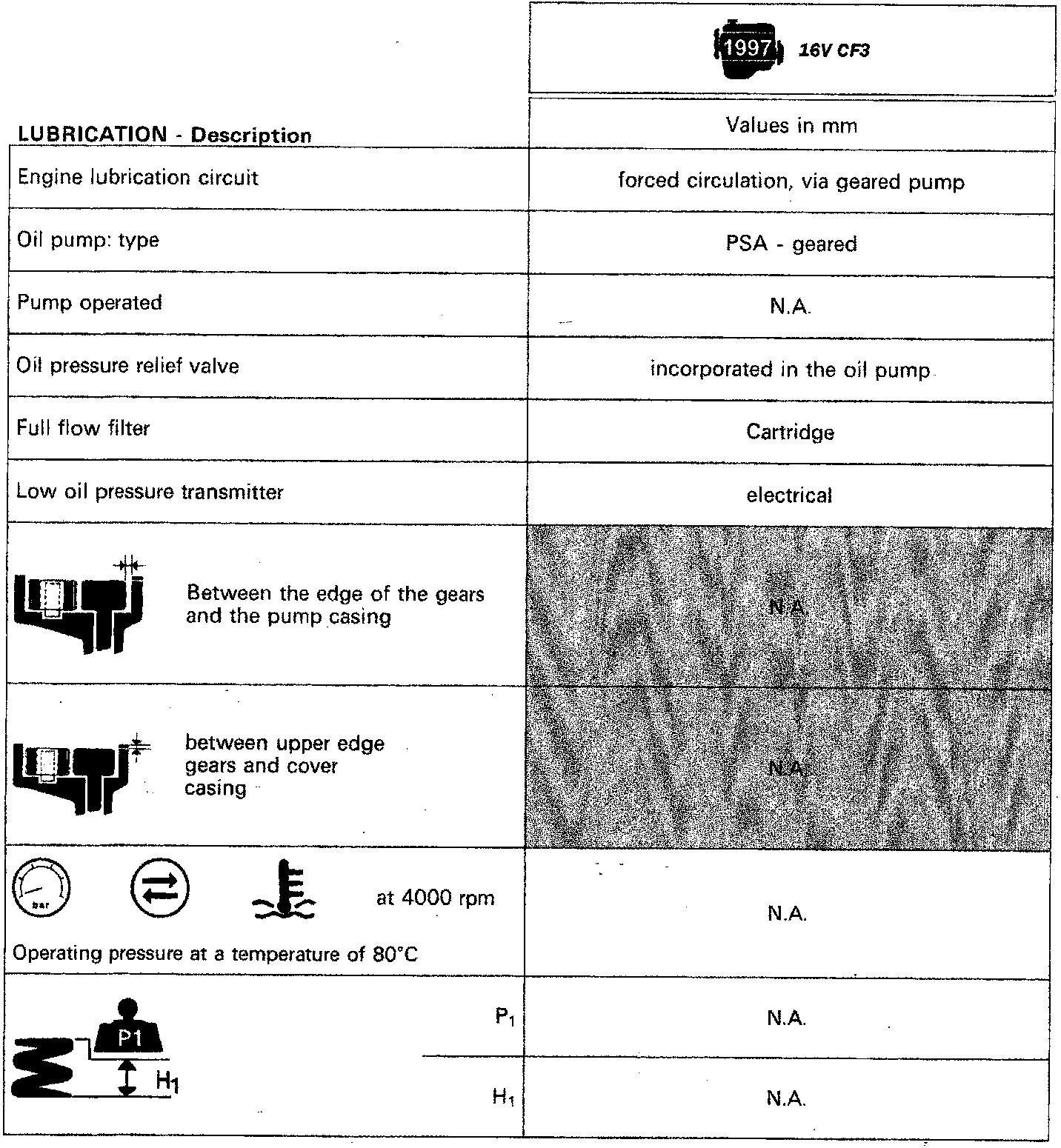

LUBRICATION - Description

	1997 16V CF3
	Values in mm
Engine lubrication circuit	forced circulation, via geared pump
Oil pump: type	PSA - geared
Pump operated	N.A.
Oil pressure relief valve	incorporated in the oil pump
Full flow filter	Cartridge
Low oil pressure transmitter	electrical
Between the edge of the gears and the pump casing	N.A.
between upper edge gears and cover casing	N.A.
at 4000 rpm Operating pressure at a temperature of 80°C	N.A.
	P1 N.A.
	H1 N.A.
