Braking system
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Technical data (1997 16v) › Braking system
00 Introduction and technical dataBraking system · page 1 of 3
Braking system

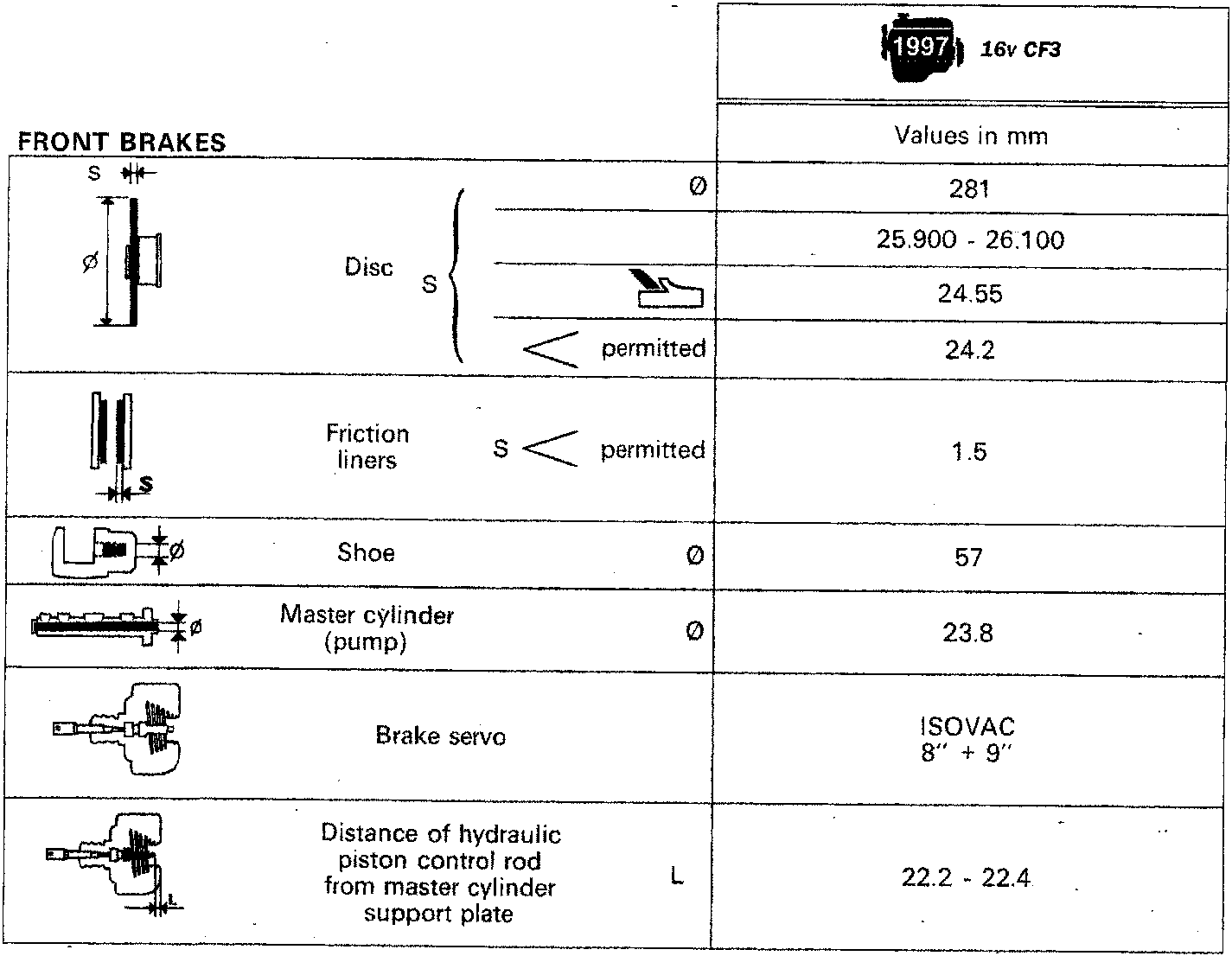

| FRONT BRAKES | 1997 16v CF3 |
|---|---|
| Values in mm | |
| Disc S Ø | 281 |
| S | 25.900 - 26.100 |
| [foot pedal icon] | 24.55 |
| permitted < | 24.2 |
| Friction liners S permitted < | 1.5 |
| Shoe Ø | 57 |
| Master cylinder (pump) Ø | 23.8 |
| Brake servo | ISOVAC 8" + 9" |
| Distance of hydraulic piston control rod from master cylinder support plate L | 22.2 - 22.4 |
