00 Introduction and technical dataBraking system · page 3 of 3
| ENGINE TYPE | 1997 16v CF3 | |
|---|---|---|
| Make | rack and pinion with power steering |
|
| Ratio | no. of turns lock to lock |
3 |
rack and pinion travel |
152 mm | |
| Minimum turning circle | 11.8 m | |
| outer wheel α₁ | 31° 29' 20'' | |
| steering wheel α₂ | 36° 18' 34'' | |
| Steering column | with two universal joints |
|

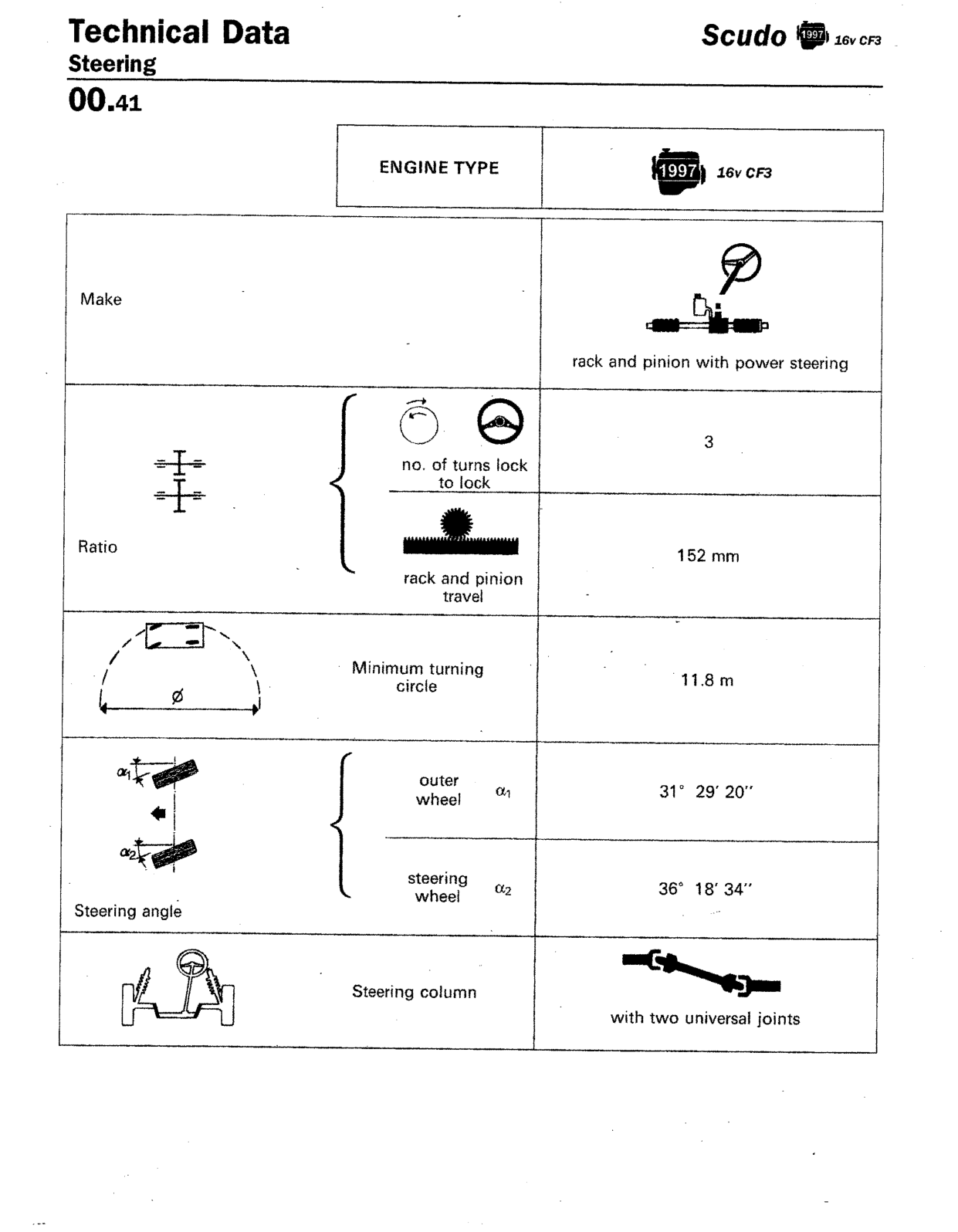

Original page
