Braking system (page 2 of 3)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Technical data (1997 16v)
00 Introduction and technical dataBraking system · page 2 of 3
REAR BRAKES
| Values in mm | ||
|---|---|---|
| Disc Ø S permitted |
295 9.900 - 10.100 8.35 8 |
|
| Brake pads S permitted |
1.5 | |
| Shoe Ø |
36 | |
| Drum Ø permitted |
180.000 - 180.160 - - |
|
| Callipers S permitted |
1.5 | |
| Cylinders Ø |
- | |
| Load proportioning valve | acting on rear wheels | |
| Ratio (reduction) | 0.3 |

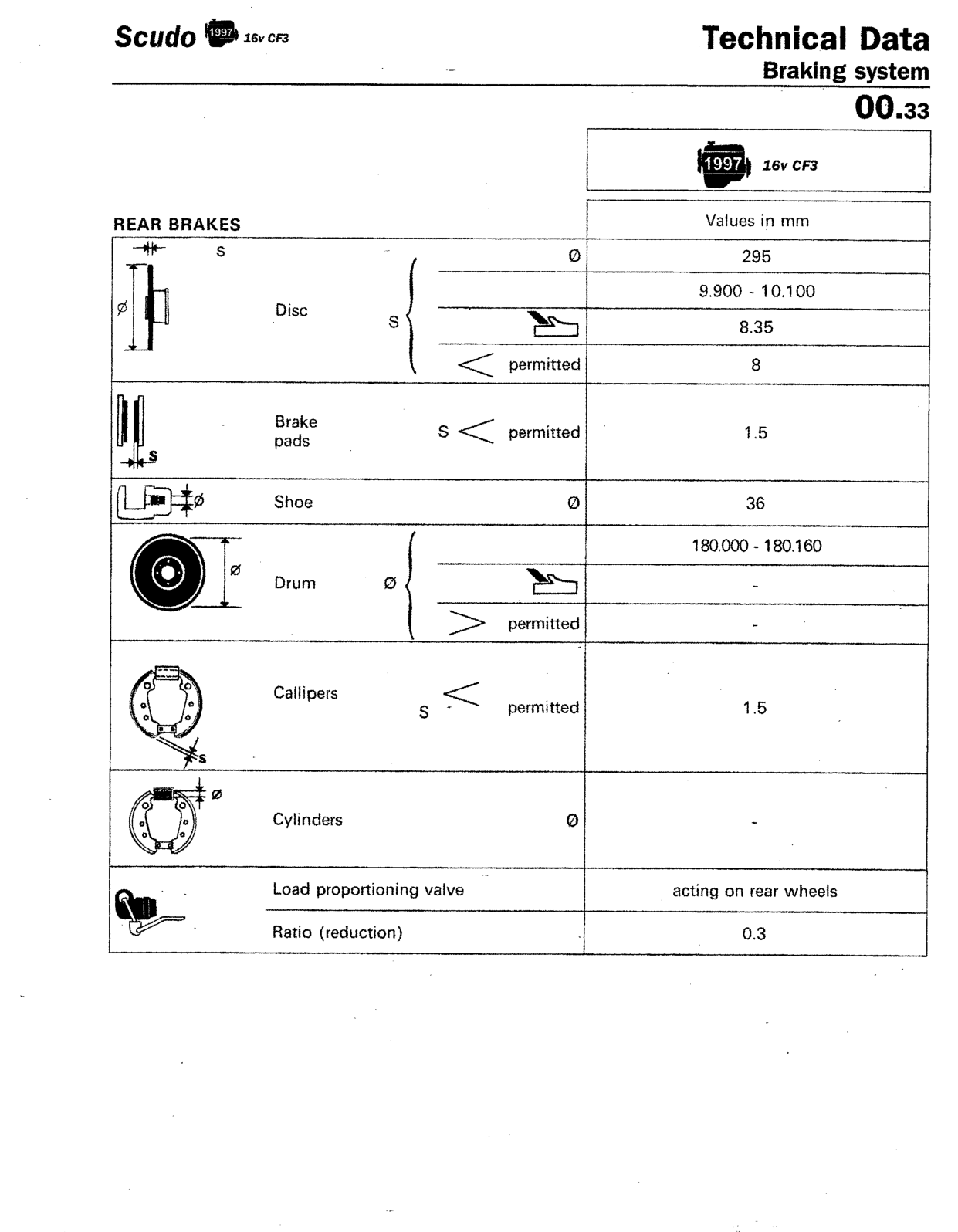

Original page
