00 Introduction and technical dataTyres

TYRES

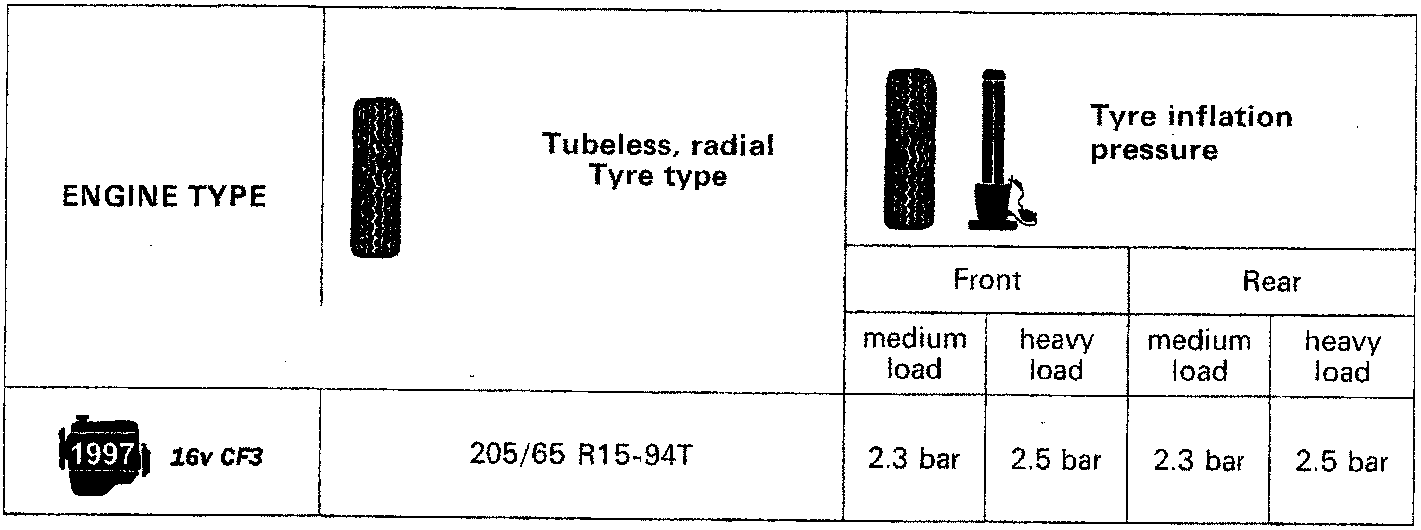

Table showing tyre type, inflation pressure for front and rear axles under medium and heavy load conditions for the 1997 16v CF3 engine.
ENGINE TYPE Tubeless, radial
Tyre type		 Tyre inflation pressure
Front Rear
medium load heavy load medium load heavy load
1997 16v CF3 205/65 R15-94T 2.3 bar 2.5 bar 2.3 bar 2.5 bar

WHEEL RIM

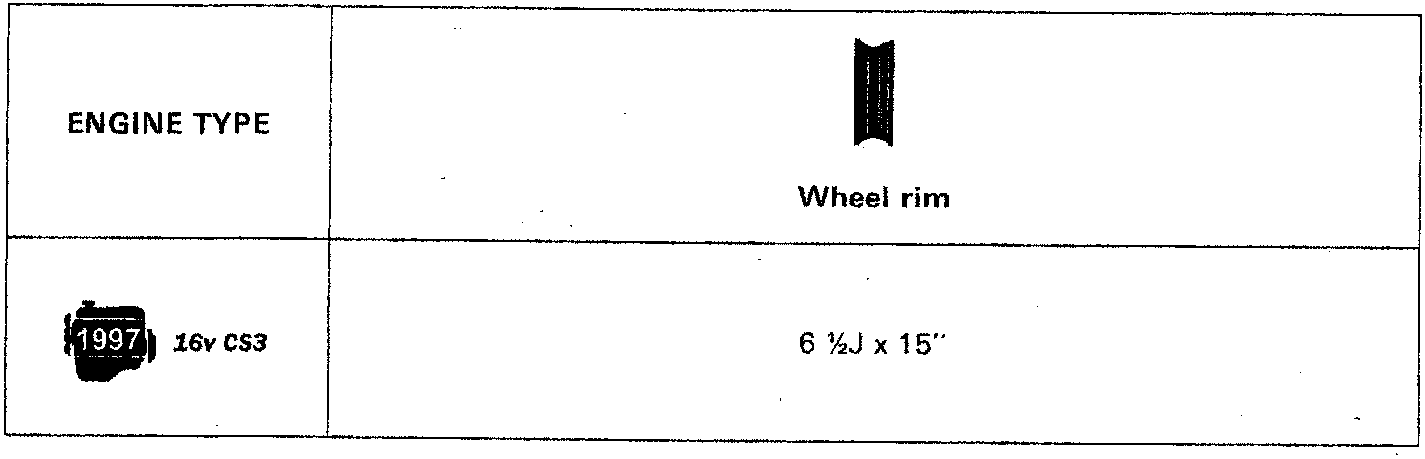

Table showing wheel rim specification for the 1997 16v CS3 engine.
ENGINE TYPE Wheel rim
1997 16v CS3 6 ½J x 15''
