Fiat Scudo Factory Service Manual (1996-2006)01 · 00 Introduction and technical data
01 · General

Wheels

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Technical data (1997 16v) › Wheels
00 Introduction and technical dataWheels

Wheels – diagram from the 00 Introduction and technical data chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.

Wheels

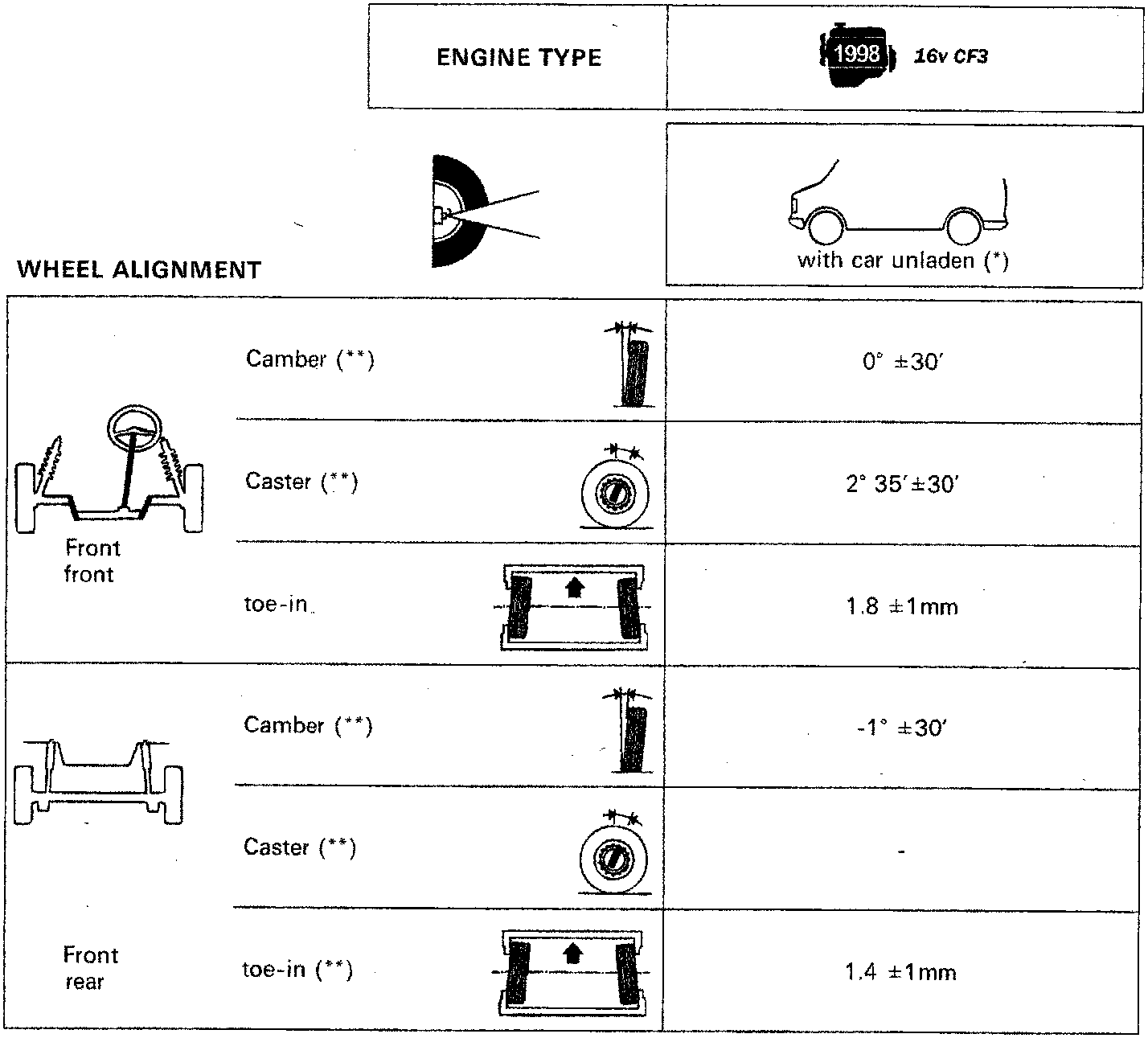

Wheel alignment technical data table showing engine type 1998 16v CF3, front and rear wheel alignment specifications for camber, caster, and toe-in with car unladen

(*) With tyres inflated to the specified pressure and car in running order

(**) Angles not adjustable
