Technical data (2003 range) › Change and differential

00 Introduction and technical dataChange and differential

Change and differential

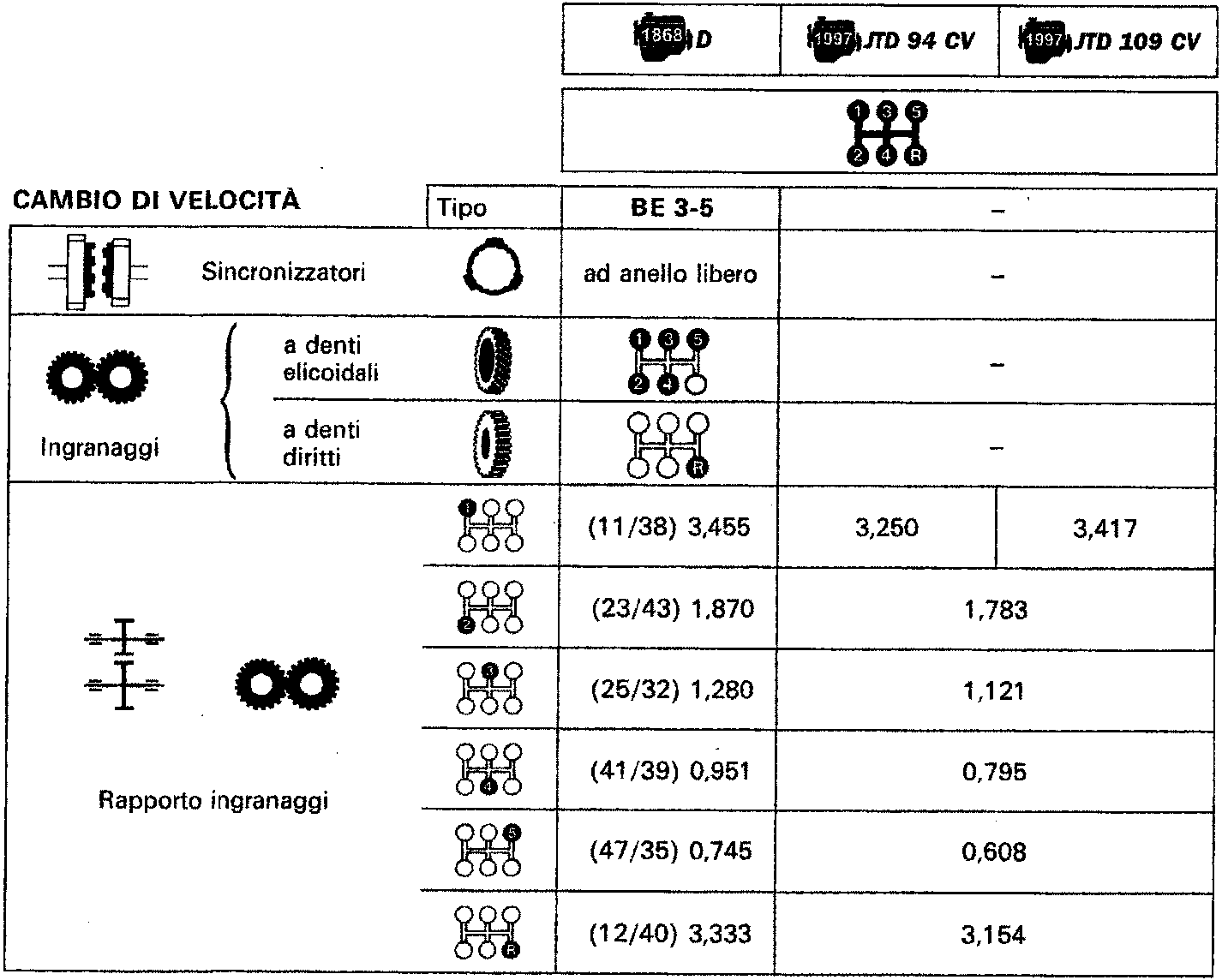

GEARBOX

GEARBOX		Type	BE 3-5	–
Synchronisers		free-ring type	–
Gears		helical teeth	–
		straight teeth	–
Gear ratios		(11/38) 3.455	3.250	3.417
		(23/43) 1.870	1.783
		(25/32) 1.280	1.121
		(41/39) 0.951	0.795
		(47/35) 0.745	0.608
		(12/40) 3.333	3.154

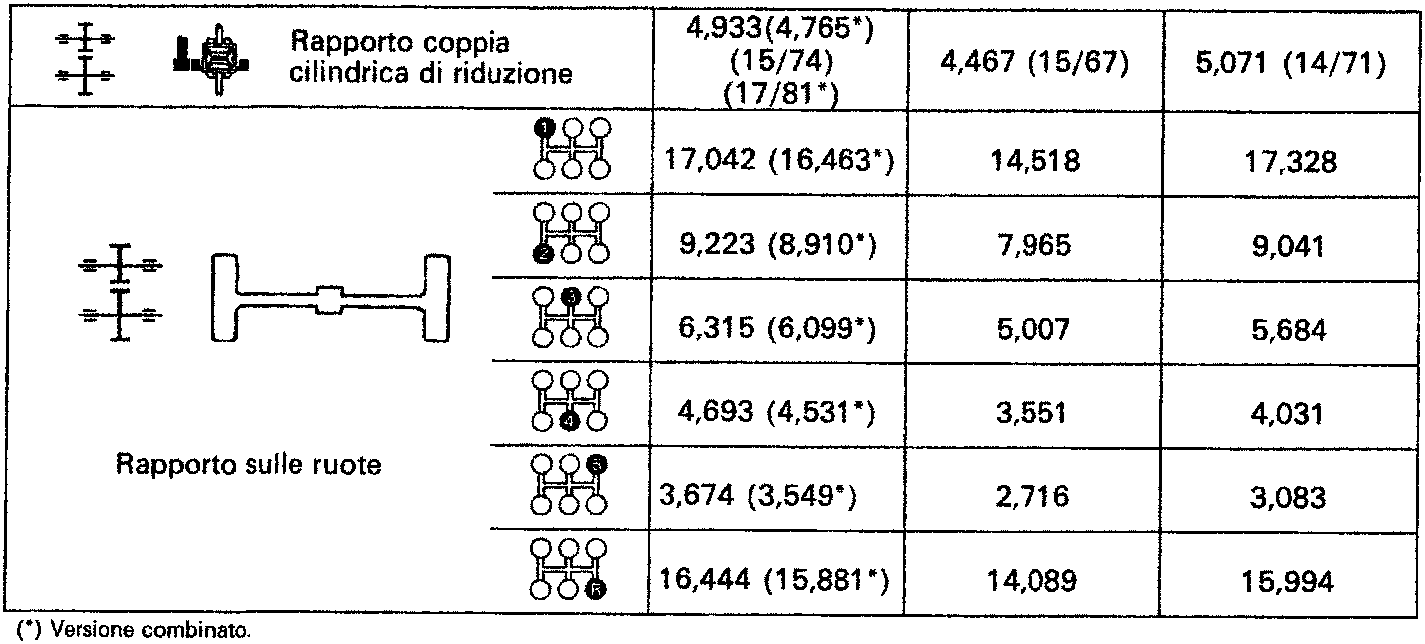

DIFFERENTIAL

Cylindrical reduction pinion ratio	4.933 (4.765*) (15/74) (17/81*)	4.467 (15/67)	5.071 (14/71)
17.042 (16.463*)	14.518	17.328
9.223 (8.910*)	7.965	9.041
6.315 (6.099*)	5.007	5.684
4.693 (4.531*)	3.551	4.031
3.674 (3.549*)	2.716	3.083
16.444 (15.881*)	14.089	15.994

(*) Combined version.
