Engine 00.10

DIMENSIONS AND TORQUE VALUES
Values in mm

Cylinder bore Ø	82,2
Piston protrusion	0,51 ÷ 0,79

COOLING

Thermoswitch for fan engagement	1st stage	92°C (90°C*)
	2nd stage	97°C (101°C*)
	1st stage	89°C (87°C*)
	2nd stage	94°C (98°C*)
Engine coolant thermostat	opening start	83°C
	full opening	95°C
	valve travel	–
Axial clearance between impeller blades and pump body		–
Radiator pressure test		1 bar
Expansion tank relief spring calibration check		1 bar

(*) Vehicles equipped with air conditioning.

FUEL SUPPLY

Indirect injection system	DELPHI DCN 2.2
	LUCAS 1867D (**)

(**) As an alternative.

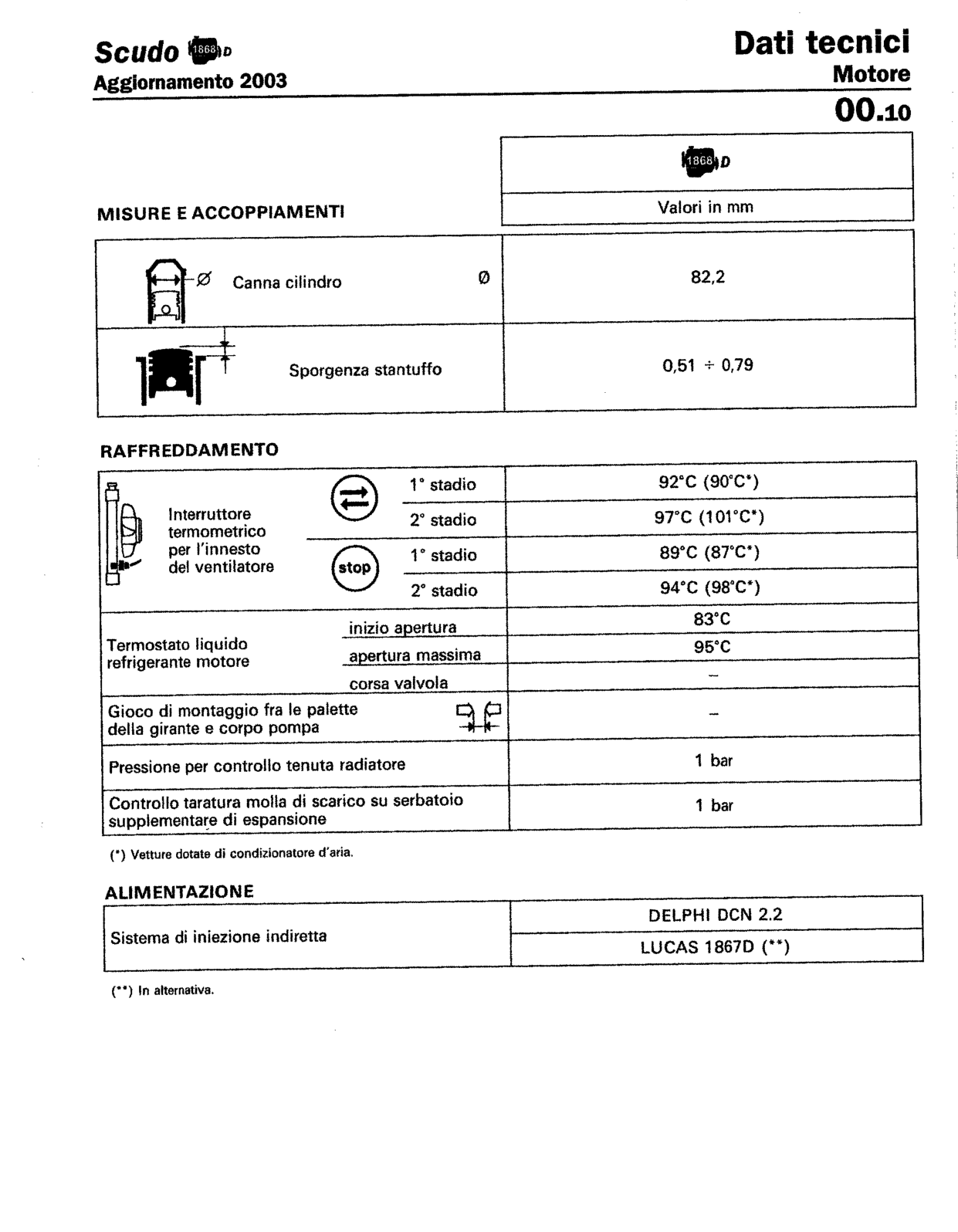

Original page
