FRONT BRAKES

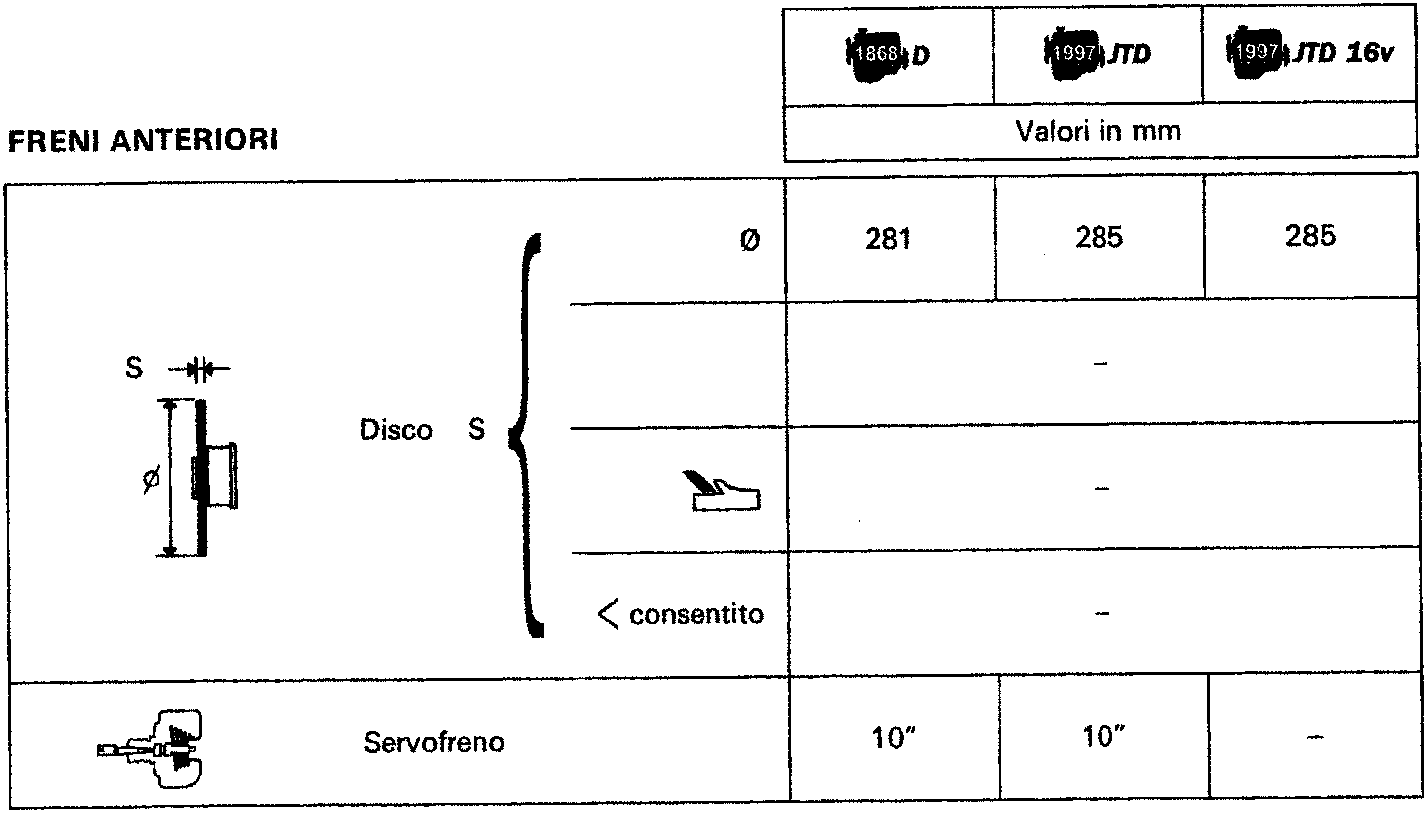

Technical specification table for front brakes showing engine types 1868 D, 1997 JTD, and 1997 JTD 16v with dimensions for disc diameter (Ø), thickness (S), minimum thickness, and servo brake specifications.
FRONT BRAKES 1868 D 1997 JTD 1997 JTD 16v
Values in mm
Disc Ø 281 285 285
S –
–
< allowable –
Brake servo 10" 10" –

REAR BRAKES

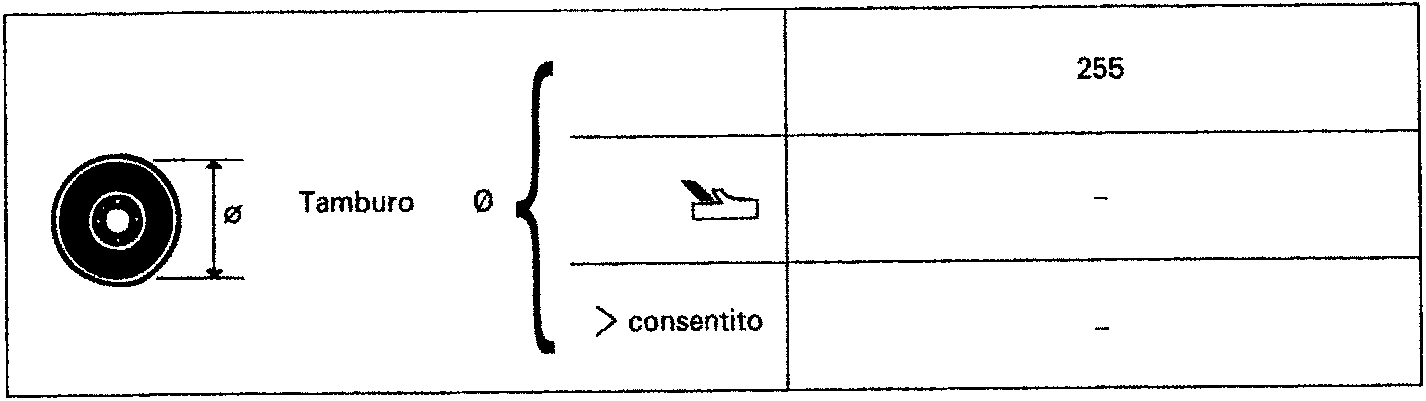

Technical specification table for rear brakes showing drum (Tamburo) diameter (Ø), minimum thickness, and maximum allowable wear limit.
REAR BRAKES
Drum Ø 255
–
> allowable –

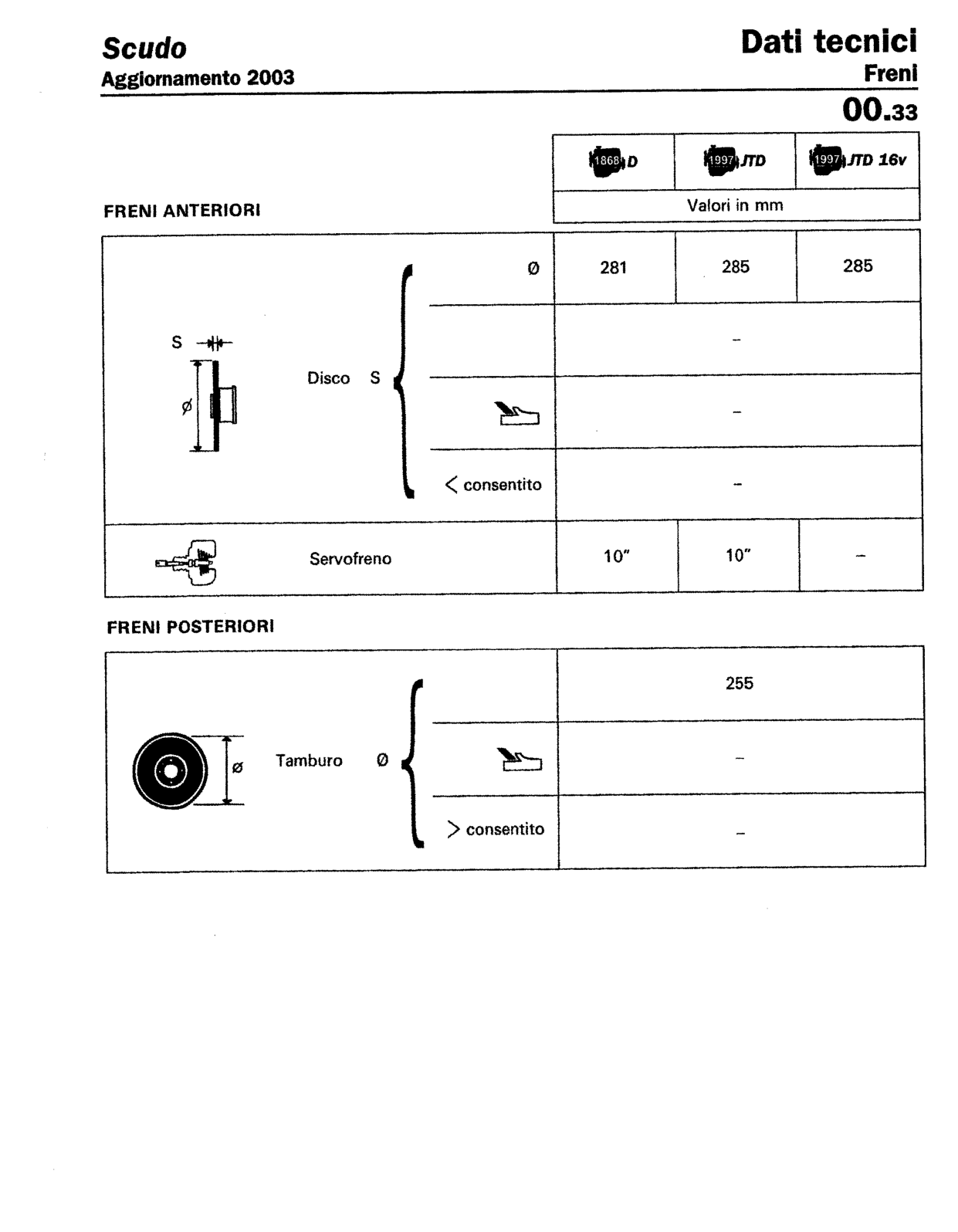

Original page
