Technical data (2003 range) › Transmission and differential

00 Introduction and technical dataTransmission and differential

Transmission and differential

Update 2003

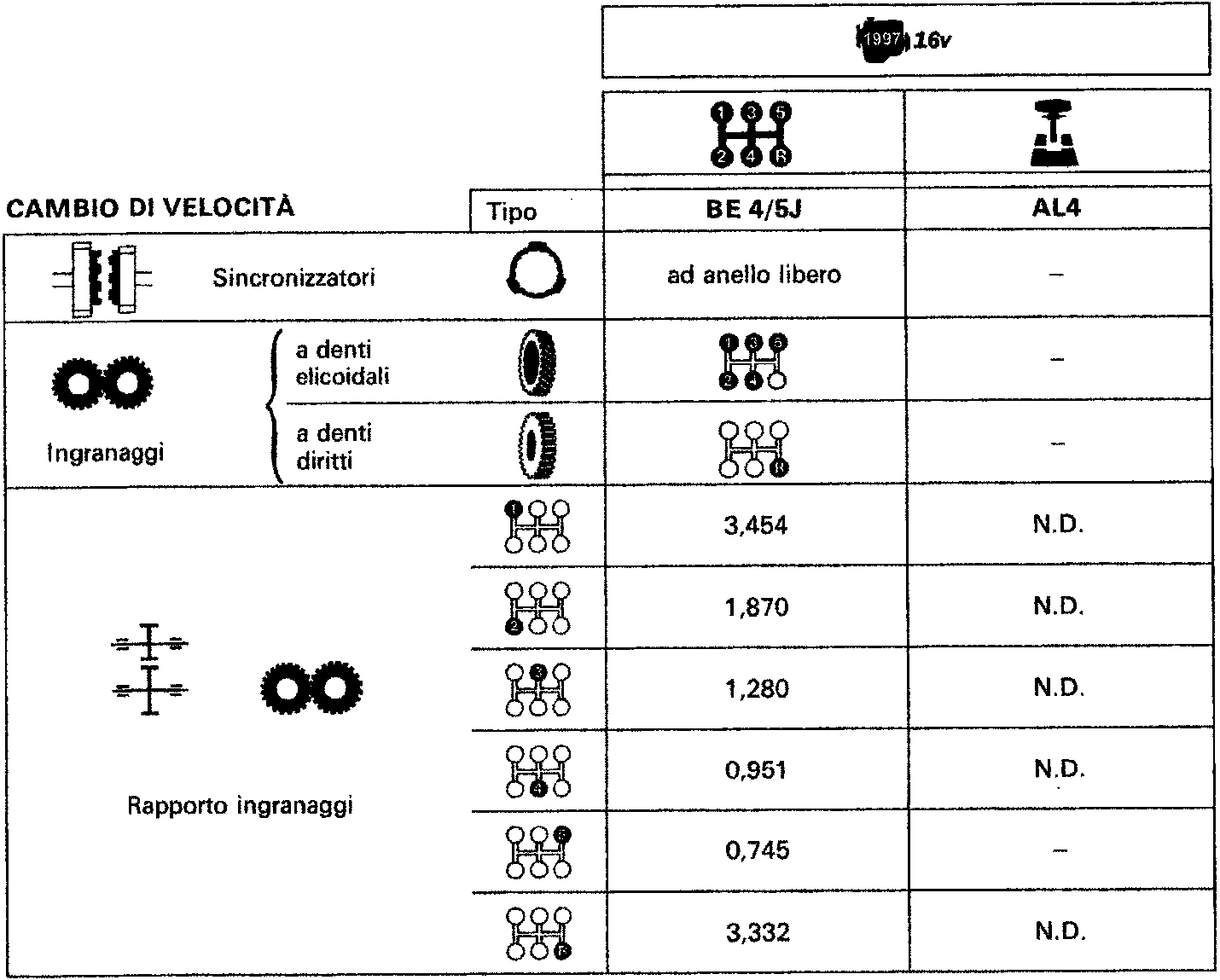

GEARBOX	Type	[1997] 16v
		[Gear shift pattern icon]	[Manual transmission icon]
		BE 4/5J	AL4
Synchronizers	[Synchronizer ring icon]	free-running ring	–
Gears	helical teeth	[Heli-cut gear icon]	–
	straight teeth	[Straight-cut gear icon]	–
Gear ratio	[1st gear diagram]	3.454	N/A
	[2nd gear diagram]	1.870	N/A
	[3rd gear diagram]	1.280	N/A
	[4th gear diagram]	0.951	N/A
	[5th gear diagram]	0.745	–
	[Reverse gear diagram]	3.332	N/A

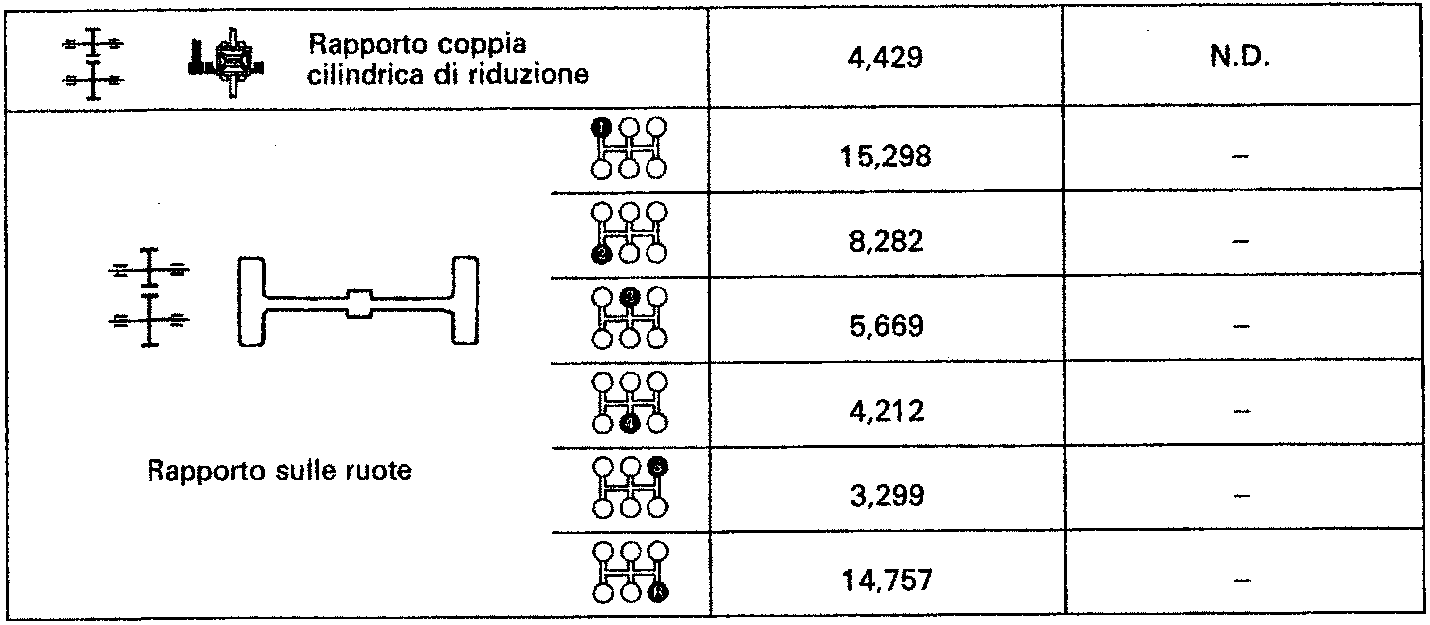

DIFFERENTIAL

		BE 4/5J	AL4
		Pinion pair reduction ratio	[Differential pinion gear icon]	4.429	N/A
Final drive ratio	[1st gear diagram]	15.298	–
	[2nd gear diagram]	8.282	–
	[3rd gear diagram]	5.669	–
	[4th gear diagram]	4.212	–
	[5th gear diagram]	3.299	–
	[Reverse gear diagram]	14.757	–
