00 Introduction and technical dataIgnition coils
| 1997 16v |
|---|
| Type - Code | M. MARELLI 48P2.38 |
| Firing order | 1 - 3 - 4 - 2 |
IGNITION COILS
| Type | SAGEM |
| Code | BBC 2.2 NDE |
| Primary ohmic resistance at 20°C Ω | 0,5 + 0,7 |
| Secondary ohmic resistance at 20°C Ω | – |
CRANKSHAFT SPEED AND TOP DEAD CENTRE SENSOR
| Type and code | – |
| Sensor winding resistance Ω | 297,5 + 402,5 |
| Air gap between sensor and engine crankshaft pulley tooth mm | 1 ±0,5 |
ENGINE ADVANCE
| Engine idling (700 ±100 rpm) | 13° ±3° |
SPARK PLUGS
| Type and code | BOSCH FR8ME
SAGEM RFN 52HZ |
| Thread size on engine | M 14 × 1,25 |
| Electrode gap mm | 0,80 ±0,05 |

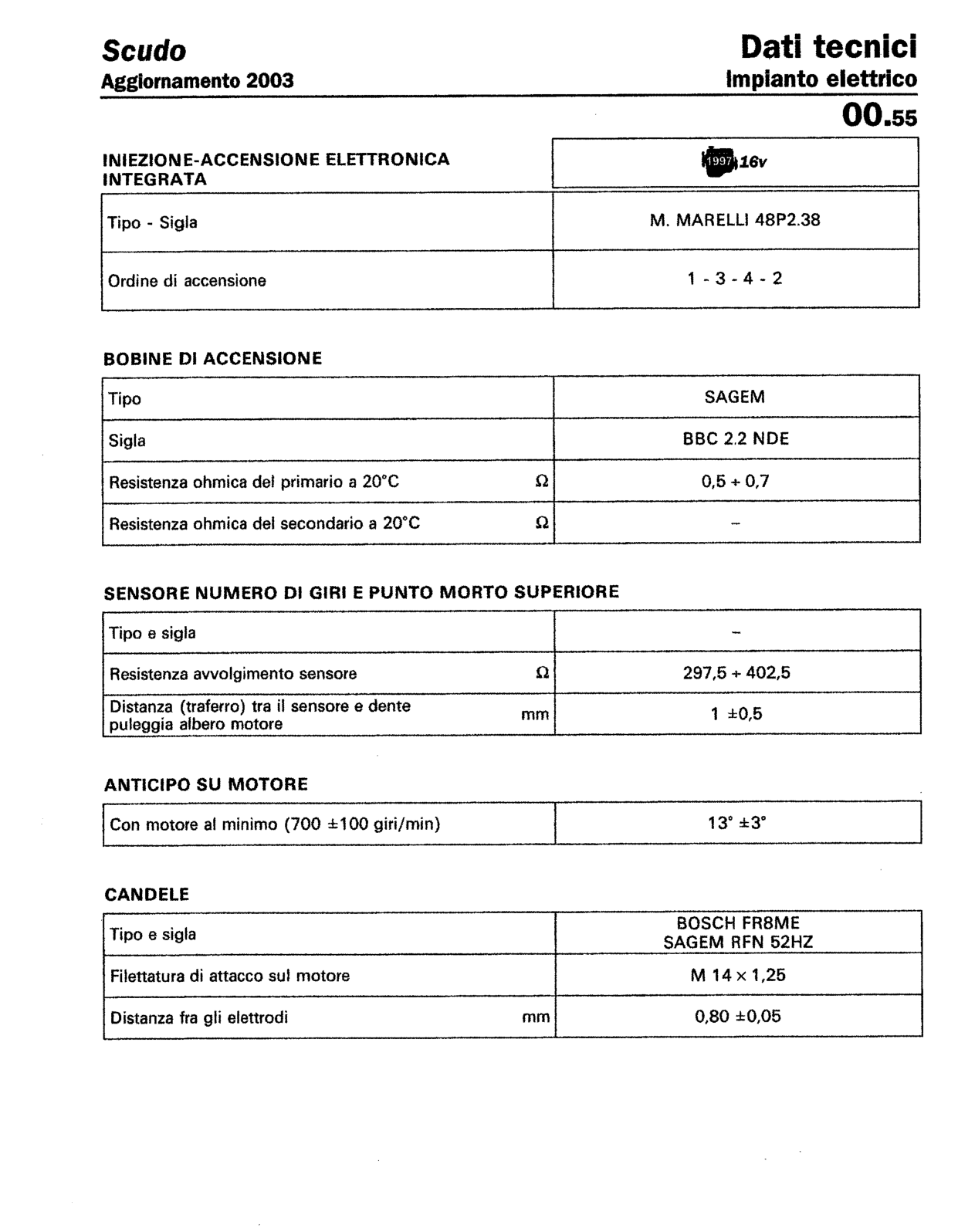

Original page
