00 Introduction and technical dataWheel rims

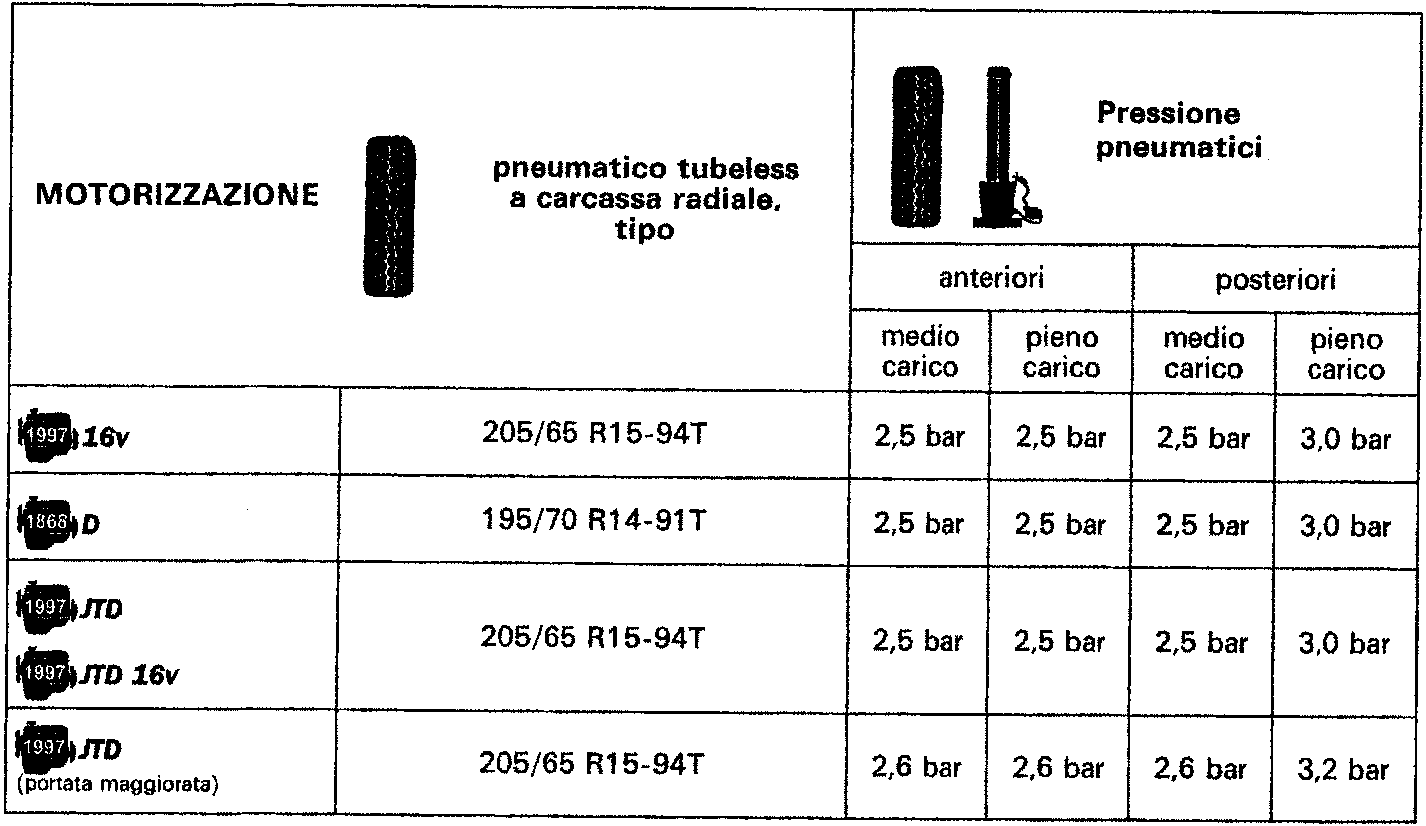

| ENGINE TYPE | tubeless tyre with radial carcass, type |
Tyre pressure | |||
|---|---|---|---|---|---|
| front | rear | ||||
| medium load |
full load |
medium load |
full load |
||
| 16v | 205/65 R15-94T | 2.5 bar | 2.5 bar | 2.5 bar | 3.0 bar |
| D | 195/70 R14-91T | 2.5 bar | 2.5 bar | 2.5 bar | 3.0 bar |
| JTD JTD 16v |
205/65 R15-94T | 2.5 bar | 2.5 bar | 2.5 bar | 3.0 bar |
| JTD (increased load capacity) |
205/65 R15-94T | 2.6 bar | 2.6 bar | 2.6 bar | 3.2 bar |
With a warm tyre, the pressure value must be +0.3 bar higher than the prescribed value.

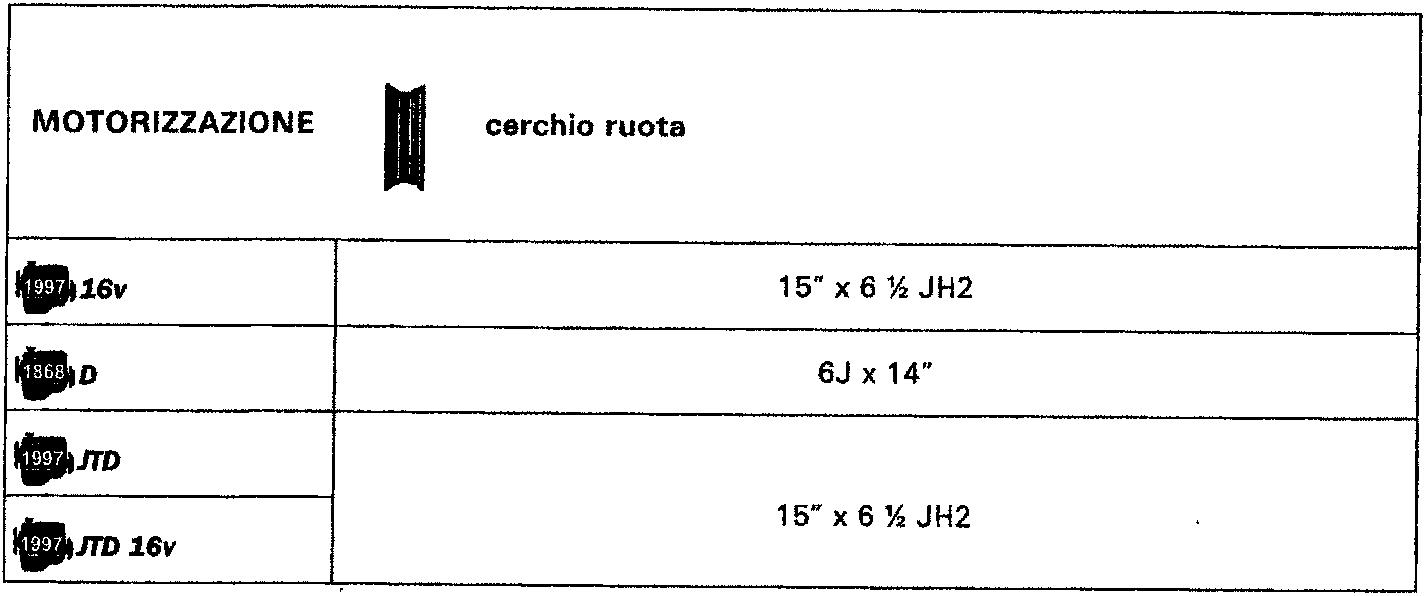

WHEEL RIMS
| ENGINE TYPE | wheel rim |
|---|---|
| 16v | 15" x 6 ½ JH2 |
| D | 6J x 14" |
| JTD | 15" x 6 ½ JH2 |
| JTD 16v |
