00 Introduction and technical dataEngine: crankshaft components · page 1 of 5

Engine: crankshaft components

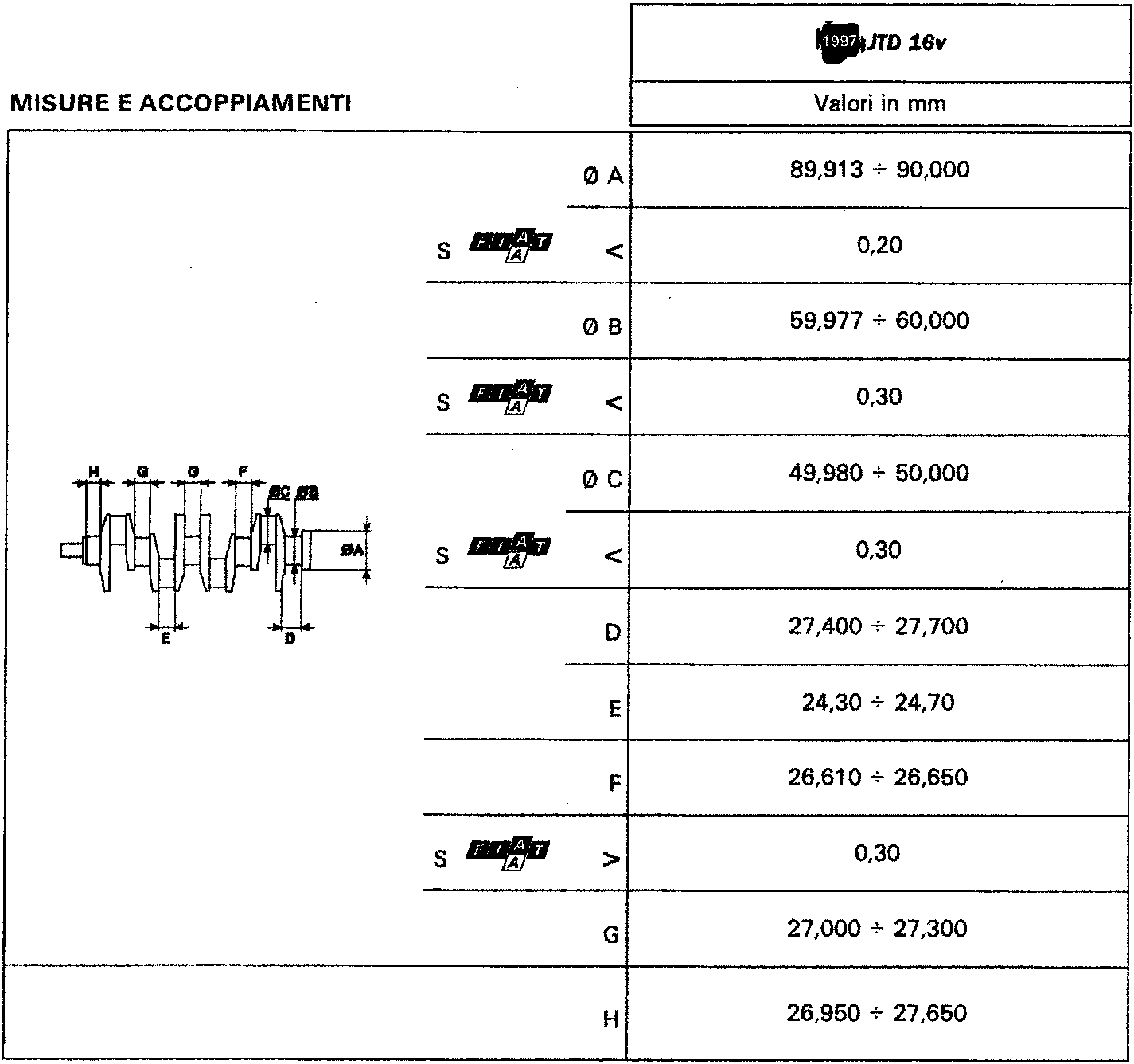

Table of technical measurements and couplings for the JTD 16v engine crankshaft, including a diagram with labeled dimensions A through H.
MEASUREMENTS AND COUPLINGS (1997) JTD 16v
Values in mm
Ø A 89,913 ÷ 90,000
S [FIAT logo] < 0,20
Ø B 59,977 ÷ 60,000
S [FIAT logo] < 0,30
Ø C 49,980 ÷ 50,000
S [FIAT logo] < 0,30
D 27,400 ÷ 27,700
E 24,30 ÷ 24,70
F 26,610 ÷ 26,650
S [FIAT logo] > 0,30
G 27,000 ÷ 27,300
H 26,950 ÷ 27,650
