02 · Engine

Adjusting pump advance

Make: Fiat
Model: Scudo Factory Service Manual
Year: 1996–2006
Section: Fuel system (1905 D) › Adjusting pump advance

‹ Prev Checks and adjustments Next › A) Idling (engine warm)

10 EngineAdjusting pump advance

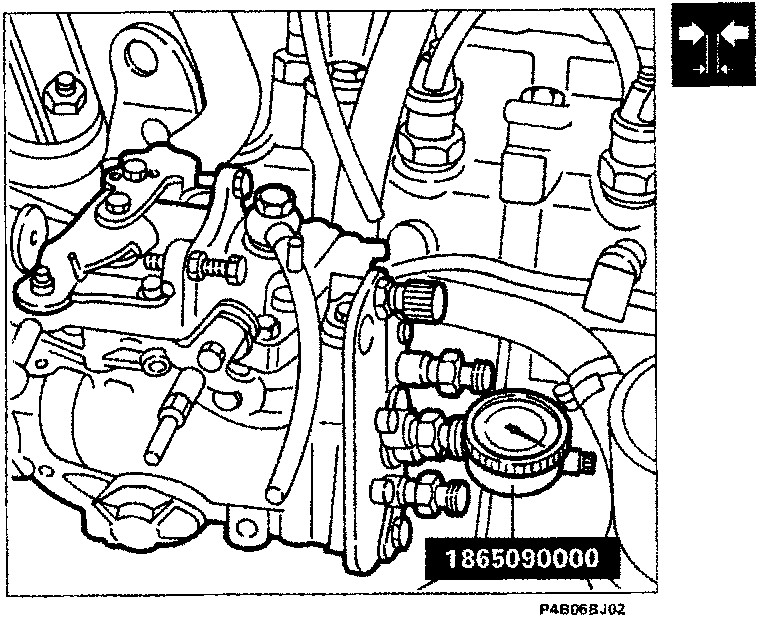

Diagram of injection pump with dial gauge attached, labeled 1865090000

Turn crankshaft in its direction of rotation and lock using tool 1860863000. Take reading off dial gauge: Piston stroke: 0.90 mm If this value is not obtained, adjust as follows.

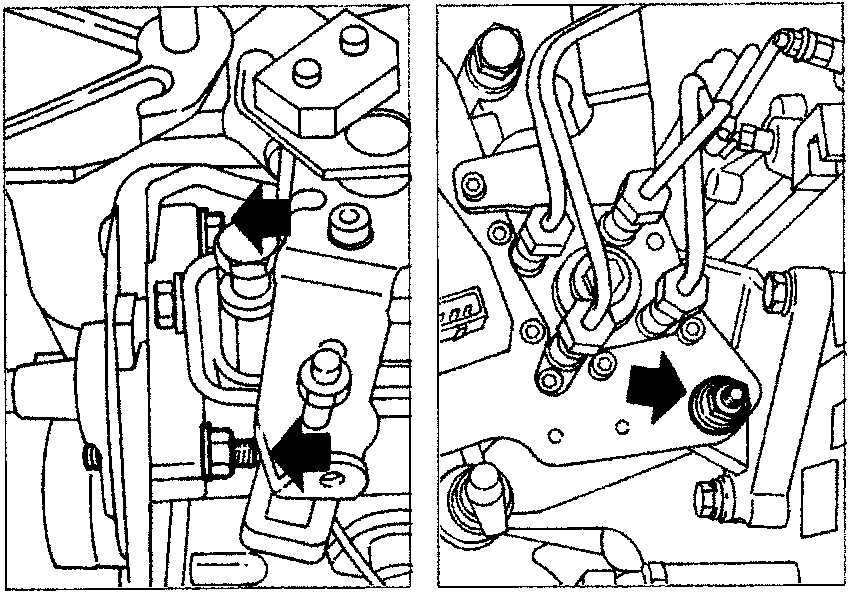

Two diagrams showing arrows pointing to front nuts and rear injection pump retaining bolt on the pump assembly

Adjusting pump advance

Keeping the crankshaft locked in position, loose the three front nuts (arrowed, one is not visible) and the rear injection pump retaining bolt (arrowed) using tool 1850160000.

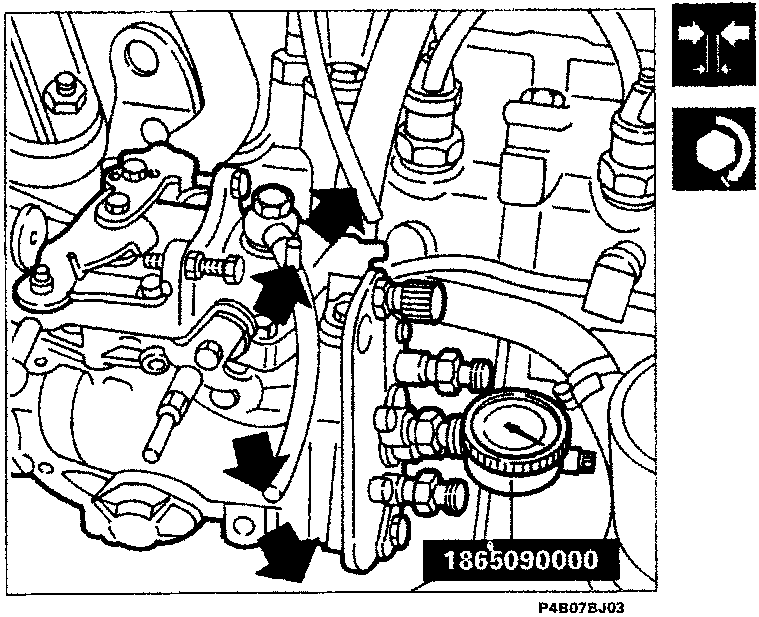

Diagram of injection pump with dial gauge attached, labeled 1865090000, with arrows indicating adjustment points

Turn pump slowly until specified reading appears on dial gauge: Piston stroke: 0.90 mm Tighten pump retaining bolts to the specified torque. Remove tool 1865090000, refit pipes, injection pump plug and oil vapour separator.
