CHECKS AND ADJUSTMENTS

Checking injection pump advance

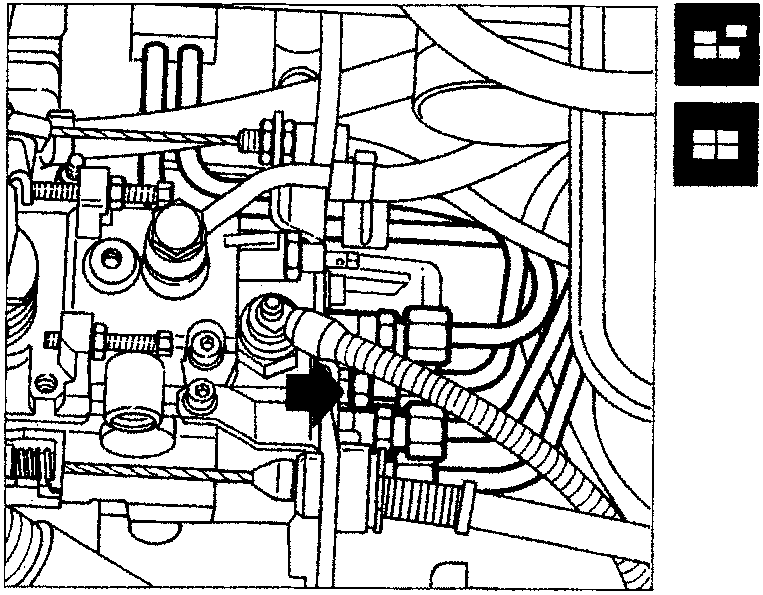

Diagram showing the location of the oil vapour separator and fuel delivery line to injectors, with an arrow pointing to a plug on a lock-nut.
Remove the following components:
  • oil vapour separator;
  • fuel delivery line to injectors.
Remove plug on lock-nut (arrowed).

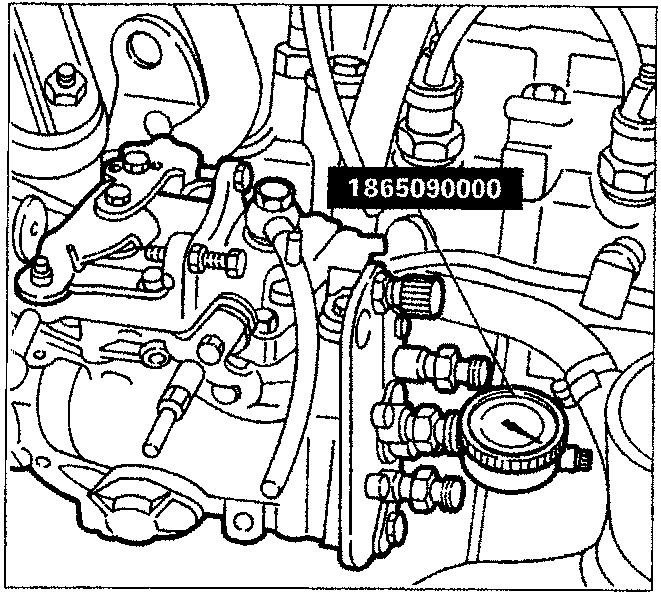

Diagram showing tool 1865090000 tightened into a threaded socket with a centesimal gauge bringing a stylus into contact with the distributor piston crown.
Tighten tool 1865090000 with centesimal gauge into the threaded socket. Bring stylus into contact with distributor piston crown.

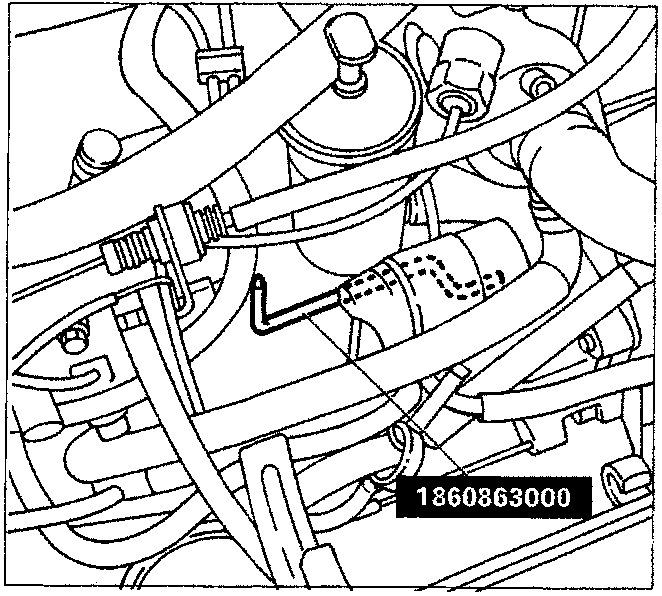

Diagram showing tool 1860863000 fitted into a hole on the engine flywheel.
Turn crankshaft until tool 1860863000 fits into hole on engine flywheel.

NOTE Check that pump pinion is on measurement point. Otherwise turn crankshaft through one complete revolution.

Remove tool 1860863000 and turn crankshaft against direction of rotation until it reaches BDC of distributor piston. Zero dial gauge in this position.
