10 EngineInjection pump
INJECTION PUMP
Manufacturer: BOSCH
Type: VE R 425-6
The rotary injection pump is located on the front end of the engine and turned by the toothed timing belt.
It is equipped with a cold fast idle device TLA, which automatically adjusts idle speed when the engine is cold;

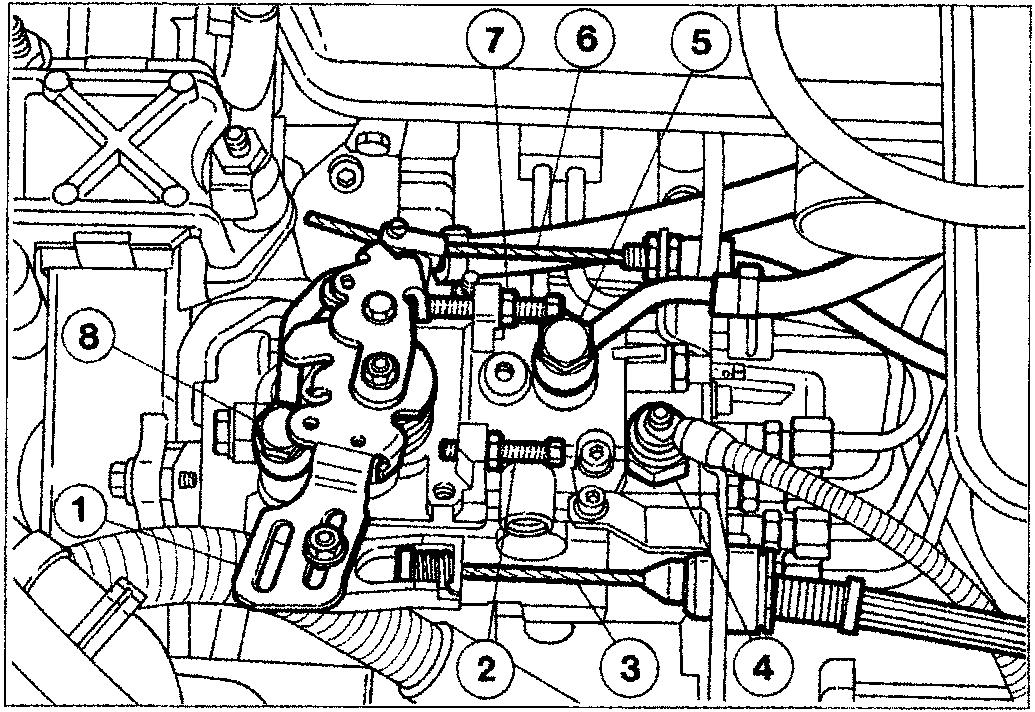

- Accelerator lever
- Maximum speed adjustment screw
- Accelerator cable
- Stop solenoid connector
- Fuel outlet fitting (to tank)
- TLA device control cable
- Residual flow adjustment screw
- Fuel inlet fitting (from filter)
