10 EngineEngine cold · page 1 of 2

Engine cold

Thermostatic sensor (2), fitted to thermostat case, operates automatic fast idle control lever (6) via connecting lead (1).

With engine cold, thermostatic sensor is in rest position, because engine coolant is below cut-in threshold temperature (60°C ± 2°C).

Engine warm

When engine coolant reaches cut-in temperature, thermostatic sensor (2) starts operating and plunger (3) begins to move slowly in response to the gradual increase in coolant temperature. As a result, cable (1) pulls lever (6) until idle speed position is reached.

In this position, appendage of lever (6) must be in contact with idle adjustment screw (5).

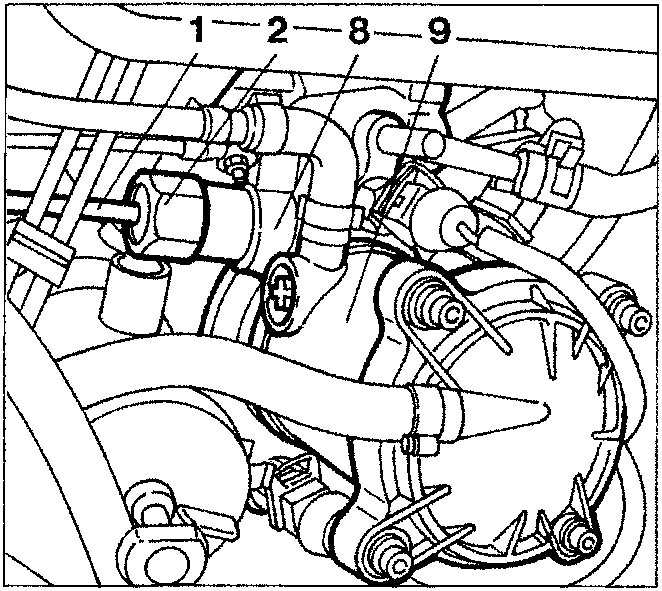

Diagram showing thermostatic sensor components on engine, labeled 1, 2, 8, 9

Thermostatic sensor on engine

  1. Lead connecting thermostatic sensor - TLA control lever
  2. Thermostatic sensor
  3. Engine thermostat case
  4. Fuel filter

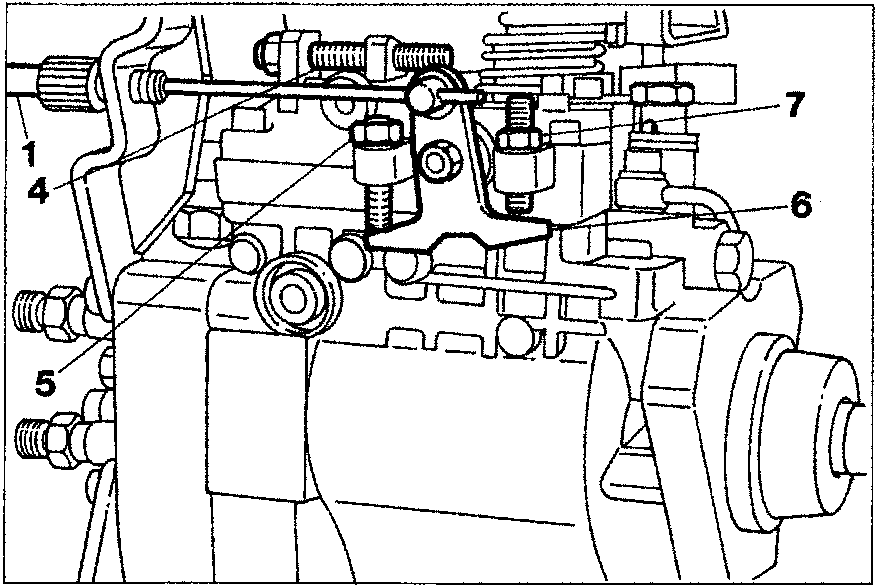

Diagram showing TLA device components on engine, labeled 1, 4, 5, 6, 7

TLA device on engine

  1. Lead connecting thermostatic sensor-TLA control lever
  2. Residual flow adjustment screw
  3. Warm idle adjustment screw
  4. TLA control lever
  5. Cold fast idle adjustment screw
