Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Engine cold (page 2 of 2)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Fuel system (1905 D)
10 EngineEngine cold · page 2 of 2

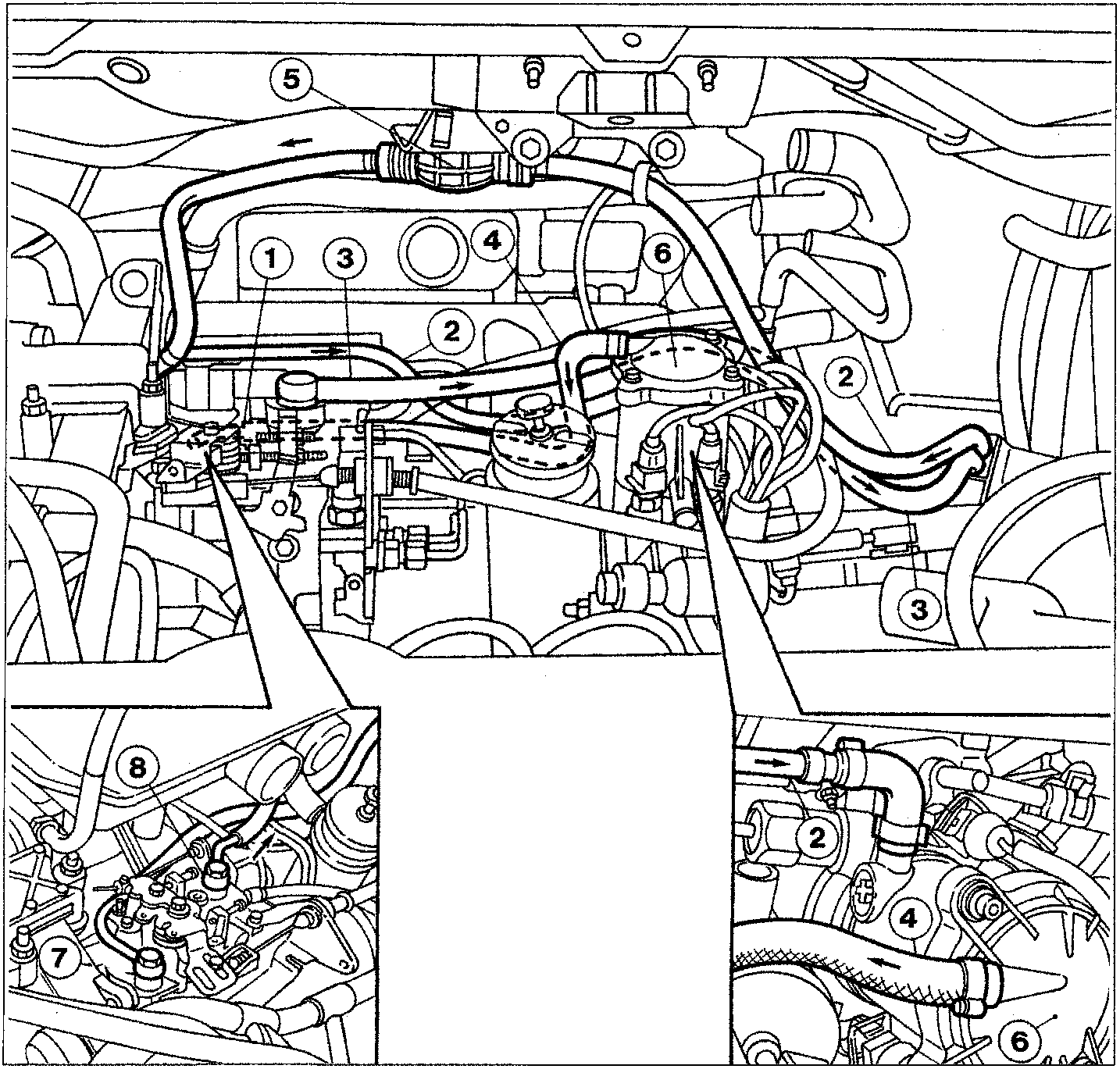

Fuel system diagram showing engine components including injection pump, fuel filter, and associated hoses with numbered callouts 1 through 8. Two inset close-up views show fittings at the bottom left and right.
  1. Injection pump
  2. Fuel flowing from tank to filter
  3. Fuel return to tank
  4. Fuel flowing out from filter to pump
  5. Manual circuit priming pump
  6. Fuel filter
  7. Fuel inlet fitting in pump
  8. Fuel outlet fitting from pump
